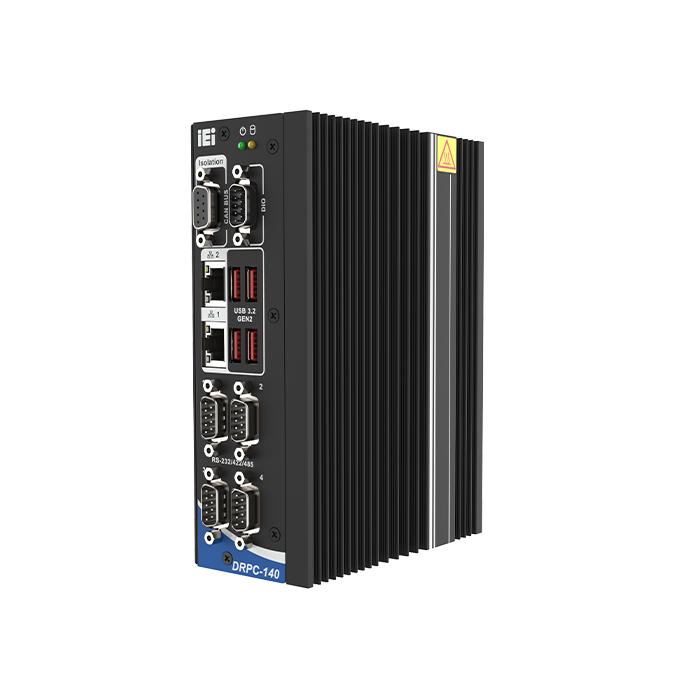

DRPC-140-EHL Fanless DIN-Rail Embedded Computer
View larger image
DRPC-140-EHL Fanless DIN-Rail Embedded Computer
Fanless DIN-Rail Embedded System
Key Features:
Fanless system
Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
Four RS232/422/485 Serial port
Two isolation CAN Bus interface
CE/FCC compliant
Description
The IEI DRPC-140-EHL is a compact, fanless embedded system designed for industrial automation, smart factory, and IoT applications. Powered by Intel® Elkhart Lake processors, it delivers enhanced computing performance with low power consumption. This robust system features multiple I/O ports, including dual GbE LAN, USB 3.2, and RS-232/422/485, making it versatile for various industrial tasks. The DRPC-140-EHL supports dual-display outputs via HDMI and DisplayPort, ensuring clear and detailed visuals. With its rugged design and wide operating temperature range, this system is built to perform reliably in harsh environments.
More Information
Brand
IEI Integration Corp.
Specifications
Form factor
SBC Form Factor
Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
Chipset: SoC
System Memory:
1 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)
Power:
3-pin terminal block: 12-24V DC
Consumption: [email protected] (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
USB:
4 x USB 3.2 Gen2
Ethernet:
2 x 2.5 GbE by Intel® I225-V/I226-V controller
Display:
2 x HDMI™ (up to 4K@30Hz)
COM Port:
4 x RS-232/422/485 (DB-9)
Digital I/O:
8-bit Digital I/O (4-in/ 4-out)
CAN BUS:
2 x CAN-bus (DB9 with 2.5kV isolation)
Wireless:
1 x 802.11a/b/g/n/ac (optional)
TPM:
1 x TPM (2 x10 pin)
Intel PTT
Watchdog Timer:
Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
System
Cooling method / System Fan
Fanless
Drive Bays
eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)
Indicator&Buttons
Buttons
1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators
1 x LED for Power
1 x LED for HDD
Physical Characteristics
Construction
Extruded aluminum alloy
Color
Color
Black
Dimensions
Dimensions
58.75 x 130 x 174 (mm)
Weight
Weight
Net: 1.39kg / Gross: 1.68 kg
Environment
Operating Temperature
-20°C ~ 60°C with 0.7M/S air flow (M.2)
Humidity
10% ~ 95% non-condensing
Operating Vibration
MIL-STD-810G 514.6C-1 (SSD)
Operating Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC
CE, FCC, UKCA
OS Support
OS Support
Microsoft® Windows® 10/11, Linux
