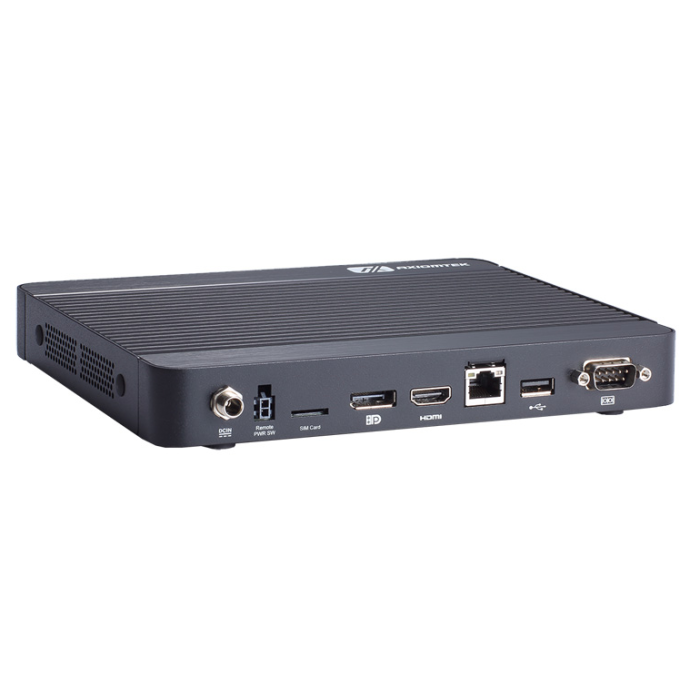

Shop DSP501-527 Digital Signage Player

SKU: DSP501-527

Digital Signage Player with 8th Gen Intel® Core™ i3/i5 & Celeron® Processor, DisplayPort++, HDMI, 5 USB and GbE LAN

Datasheet

Description

8th gen Intel® Core™ i7/i5/i3 & Celeron® Processor

2 DDR4-2400 SO-DIMM for up to 32GB of memory

1 DisplayPort++, HDMI 2.0, and HDMI 1.4 (optional)

5 USB and 1 GbE LAN

1 M.2 Key E 2230 for Wi-Fi/BT

1 M.2 Key M 2280 for storage

Data sheet

Brand

Axiomtek

Specifications

CPU	8th gen Intel® Core™ i3/i5 & Celeron® processor (Whiskey Lake)
Chipset	SoC integrated
System Memory	2 x DDR4-2400 SO-DIMM, up to 32GB
Watchdog Timer	255 levels, 1 to 255 sec./min.
COM	1 x RS-232
USB	4 x USB 3.0 1 x USB 2.0
Ethernet	1 x GbE LAN
Display	1 x HDMI 2.0 1 x DisplayPort++
Audio	1 x Mic-in 1 x Line-out
Storage	1x M.2 Key M 2280 (SATA & NVMe)
Expansion	1 x M.2 Key E 2230 slot for Wi-Fi/BT 1 x M.2 Key B 3042 slot for 4G LTE 1 x SIM card slot
Others	1 x DC power input (lockable) 1 x Power button 1 x Reset switch TPM 2.0 (optional)
Wi-Fi	1 x M.2 Key E 2230 slot for Wi-Fi/BT 1 x M.2 Key B 3042 slot for 4G LTE 1 x SIM card slot 4 x Antenna opening
Power Supply	+12V DC-in
Vibration Endurance	3 Grms with M.2 storage (5 - 500Hz, X, Y, Z directions)
Operating Temperature	0ºC to +50ºC (+32ºF to +122ºF) ,disabling CPU Turbo boost
Dimensions (W x D x H)	200mm (7.8") (W) x 160mm (6.2") (D) x 26 mm (1.0") (H)
Weight (net/gross)	1.3kg (2.86 lb)/2.3kg (5.07 lb)
Mounting	VESA Wall mount
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Certifications	CE, FCC class A
