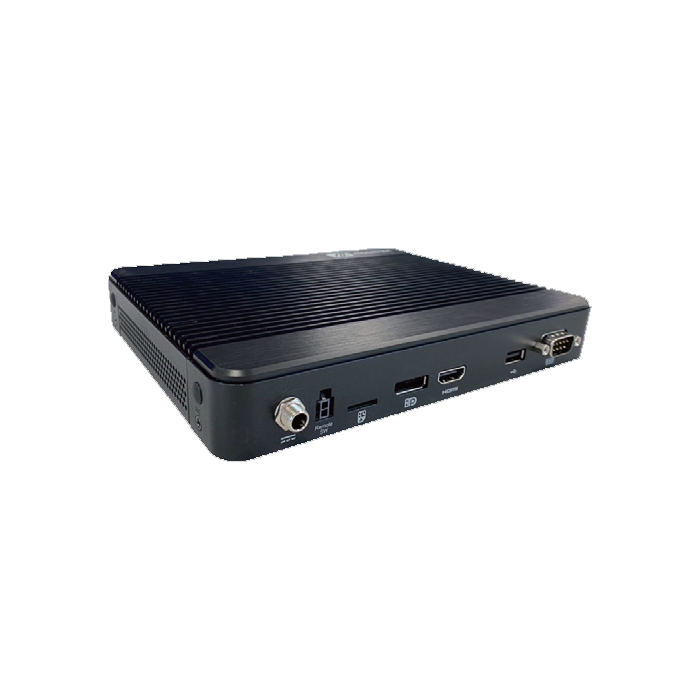

DSP501-A Digital Signage Player w/ Hailo-8 SoC

SKU: DSP501-A

Digital Signage Player with Intel® Celeron® Processor 4305UE, DisplayPort++, HDMI, 5 USB, 2 LAN, Hailo-8 SoC

Key Features:

  • Intel Celeron processor 4305UE
  • 2 DDR4-2400 SO-DIMM for up to 32GB of memory
  • 1 DisplayPort++ and 1 HDMI 2.0
  • 5 USB, 1 GbE LAN, 2.5GbE LAN
  • 1 M.2 Key E 2230 for Wi-Fi/Bluetooth

Description

Digital Signage Player with Intel® Celeron® Processor 4305UE, DisplayPort++, HDMI, 5 USB, 2 LAN, Hailo-8 SoC

Key Features:

  • Intel Celeron processor 4305UE
  • 2 DDR4-2400 SO-DIMM for up to 32GB of memory
  • 1 DisplayPort++ and 1 HDMI 2.0
  • 5 USB, 1 GbE LAN, 2.5GbE LAN
  • 1 M.2 Key E 2230 for Wi-Fi/Bluetooth

Download

More Information

Brand Axiomtek
Specifications
CPU Intel® Celeron® processor 4305UE
System Memory 2 x DDR4-2400 SO-DIMM, up to 32GB
Chipset  N/A
Storage  1 x M.2 Key M 2280 (SATA & NVMe)
System I/O Outlet 4 x USB 3.0
1 x USB 2.0
1 x GbE LAN
1 x 2.5 GbE LAN
1 x HDMI 2.0
1 x DisplayPort++
1 x RS-232
1 x Mic-in
1 x Line-out
1 x DC power input (lockable)
1 x HDD LED
1 x Power button
1 x Reset switch
1 x Remote power switch
4 x Antenna opening
Expansion Interface 1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth
Battery Lithium Lithium 3 V/220 mAH
Power Input +12V DC-in
Dimensions 200 mm (7.8") (W) x 160 mm (6.2") (D) x 29 mm (1.14") (H)
Weight (net/gross)  1.3 kg (2.86 lb)/2.3 kg (5.07 lb)
Operating Temperature 0°C to +50°C (+32°F to +122°F) disabling CPU Turbo boost
Operation Humidity 10% - 90% relative humidity, non-condensing
