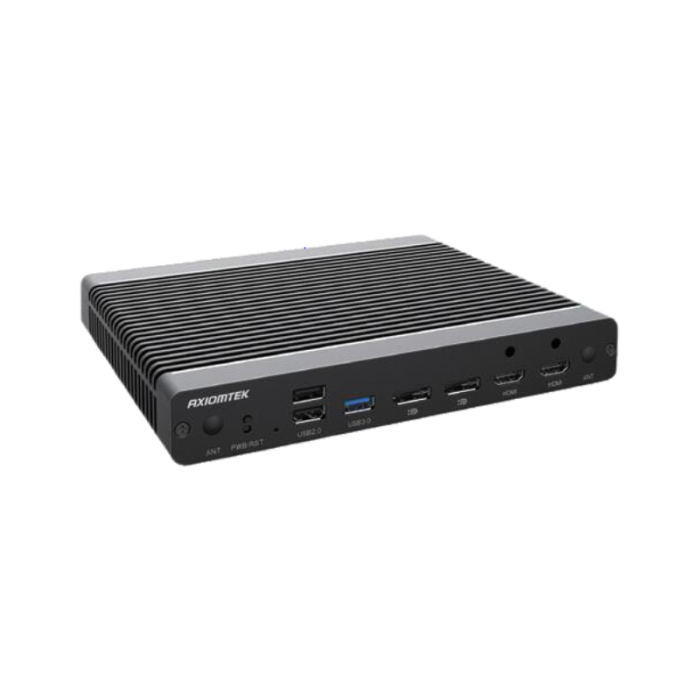

DSP521 Fanless Signage Player with 13th Gen
Digital Signage Player with 12th and 13th Generation Intel CPU, 2 HDMI, 2 DP1.4 (support
DP++), 2 RS-232, 2 LAN
Key Features:
- 2 x DDR4 SO-DIMM 3200, up to 32G each
- 2 HDMI 2.0 and 2 DP1.4 (support DP++)
- 1 1GbE LAN and 1 2.5GbE LAN
- 2 RS-232
Description
The DSP521 Digital Signage Player offers high-performance digital signage with a choice of Intel® processors, including Intel® Celeron® 7305E, Intel® U300E, Intel® Core™ i3-1315UE, and Intel® Core™ i5-1335UE. It supports up to 32GB of dual DDR4-3200 SO-DIMM memory for smooth multitasking and responsiveness. Storage is flexible with an M.2 Key M 2280 slot supporting both SATA and NVMe.
Connectivity is extensive, featuring DP1.4, HDMI 2.0 with cable lock, RS-232, USB 3.0, USB 2.0, power and reset buttons, power LED, lockable DC power input, 1G LAN (Intel® I219), 2.5GbE LAN (Intel® I226), line-out, and four antenna openings. The player also includes M.2 Key E 2230 for Wi-Fi/BT (supporting Wi-Fi 5, 6, and 6E CNVi), M.2 Key B 3042 for 3G/4G/5G, and a SIM slot.
Powered by a +12V DC-in input, the DSP521 is compact (200 mm x 160 mm x 29 mm) and lightweight (1.3 kg). It operates in temperatures from 0°C to +60°C and humidity levels between 10% and 90% relative humidity, non-condensing, making it versatile for various installation environments.
Download
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
