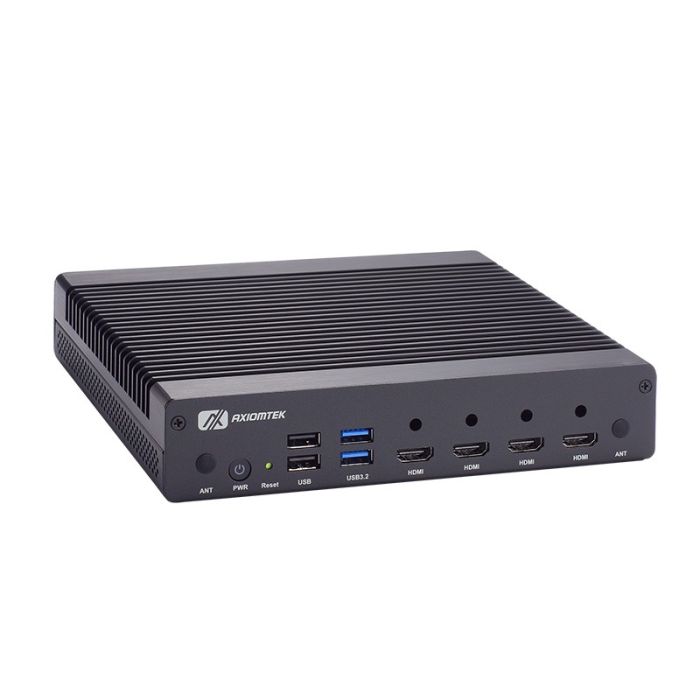

DSP522 Fanless Digital Signage Player with Intel Core

Product Overview

The Axiomtek DSP522 is a compact fanless digital signage player designed for multi display commercial environments including retail, transportation, corporate branding and interactive signage deployments. Powered by either the Intel Core i5-1335UE processor or Intel Processor U300E, it delivers reliable multimedia performance with support for up to four independent 4K displays. With flexible storage, wireless expansion and industrial grade connectivity, the DSP522 is built for continuous operation in demanding digital signage environments.

Key Features

Multi-Display 4K Signage Performance

• Supports up to four HDMI 2.1 outputs for multi-screen deployments

• Designed for high-resolution 4K content playback and digital signage applications

• Suitable for video walls, menu boards and information displays

• Integrated graphics platform optimised for multimedia workloads

Intel Processing Platform

• Available with Intel Core i5-1335UE processor or Intel Processor U300E

• Designed for responsive content delivery and commercial applications

• Supports DDR5 memory up to 96 GB

• Suitable for signage, analytics and edge processing workloads

Fanless Commercial Design

• Fanless architecture for silent operation and reduced maintenance

• Compact enclosure suited to space-constrained installations

• Designed for reliable 24/7 operation in commercial environments

• Suitable for behind-the-display and kiosk deployments

Flexible Connectivity

• Dual LAN including 1GbE and 2.5GbE networking

• Two RS-232 ports for integration with commercial and legacy devices

• USB 3.2 and USB 2.0 ports for peripherals and expansion

• Audio output support for multimedia applications

Storage and Wireless Expansion

• M.2 Key M slot supporting SATA and NVMe storage devices

• M.2 Key E slot for WiFi and Bluetooth modules

• M.2 Key B slot supporting 3G, 4G and 5G connectivity modules

• SIM slot support for cellular networking deployments

Security and Reliability

• Integrated fTPM 2.0 security support

• Watchdog timer for system stability and recovery

• Designed for long-term commercial signage deployments

• Stable operation across commercial environments


Applications and Use Cases

The DSP522 is suitable for:

• Digital signage and advertising displays
• Video wall and multi-display environments
• Transportation hubs and public information systems
• Corporate branding and presentation displays
• Retail, hospitality and quick service restaurant deployments

Dimensions/Drawings
