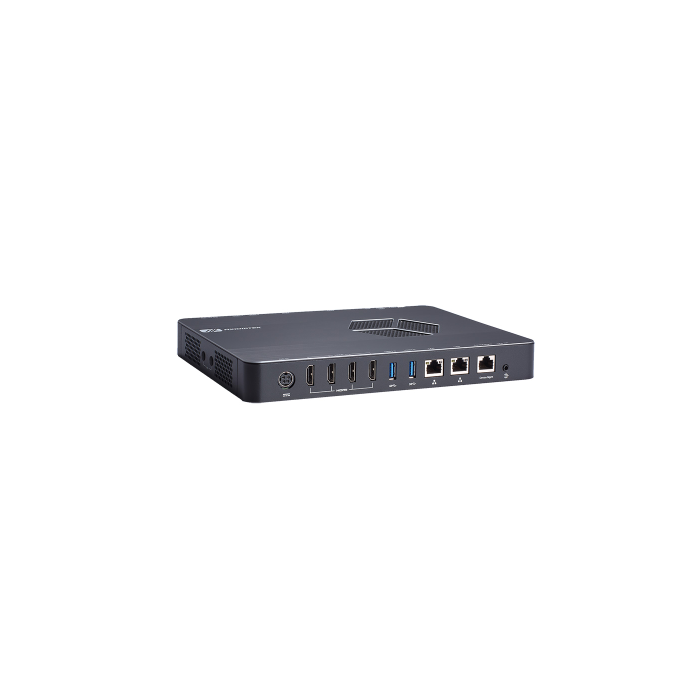

Shop DSP600 AMD V1000 Media Player

End of Life

SKU: DSP600-211

4K Digital Signage Player with AMD Ryzen Embedded V1000 Series, 4 HDMI, 2 GbE LAN and 4 USB

Datasheet

Description

· AMD Ryzen Embedded V1000 series

· 2 x DDR4-2400 SO-DIMM for up to 32GB of memory

· 4 x HDMI 2.0 with 4K resolution

· 4 x USB, 2 GbE LAN

· 1 x M.2 Key E 2230 for Wi-Fi/BT

· 2 x M.2 Key M 2280 for storage

Data Sheet

Brand

Axiomtek

Specifications

CPU	AMD Ryzen Embedded Quad Core V1807B/V1605B and Dual core V1202B onboard
Chipset	SoC integrated
System Memory	2 x DDR4-2400 SO-DIMM, up to 32GB
Watchdog Timer	255 levels, 1 to 255 sec./min.
COM	2 x RS-232
USB	2 x USB 3.1 2 x USB 2.0
Ethernet	2 x GbE LAN
Display	4 x HDMI 2.0 (4K supported)
Audio	1 x Line-out
Storage	1 x M.2 Key M 2280 (SATA) 1 x M.2 Key M 2280 (NVMe)
Expansion	1 x M.2 Key E for Wi-Fi/BT 1 x M.2 Key B for 4G/LTE 1 x SIM card slot
Others	1 x Device management 1 x HDD LED 1 x Power switch 1 x Reset switch 1 x Remote switch 4 x Antenna opening TPM 2.0
Wi-Fi	1 x M.2 Key E for Wi-Fi/BT 1 x M.2 Key B for 4G/LTE 1 x SIM card slot
Power Supply	+12V DC-in
Vibration Endurance	3 Grms with M.2 storage (5 - 500Hz, X, Y, Z directions)
Operating Temperature	0ºC to +45ºC (32ºF to +113ºF)
Dimensions (W x D x H)	250 x 182.8 x 30mm (9.84” x 7.19” x 1.18”)
Weight (net/gross)	1.9 kg (4.18 lb)/2.9k g (6.39 lb)
Mounting	Wall mount
EOS Support	Win 10, Linux
Software Support	AMS.AXView
Certifications	CE, FCC class A
