SKU: EF-24-58

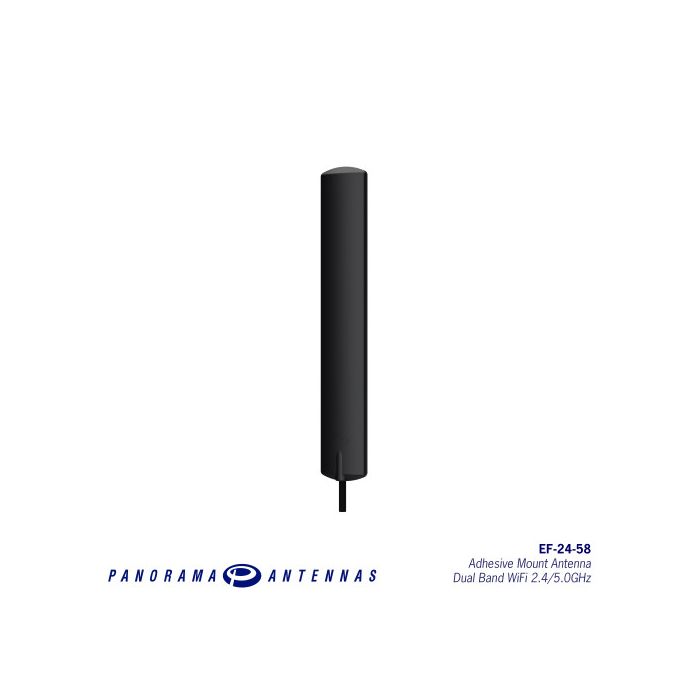

Dual band Wifi Adhesive mount antenna

Datasheet

Description

The EF-24-58 is a range of highly efficient and easy to install antennas for providing dual band WiFi coverage. These compact paddle style antennas areeasily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad. The antenna is ground plane independent making it ideal for applications distributing or receiving WiFi signal. Covering 2.4/5.0GHz the EF-24-58 is designed to support the full range of WiFi frequencies.
The antenna is constructed from weather resistant plastic and is suitable for use in semi-exposed scenarios.

Download

Datasheet

More Information

Specifications

Electrical Data
Wifi Frequencies	2.4/5.0GHz
Typical VSWR	<2:1
Peak Gain (dBi)	4dBi
Max Input Power (W)	10
Pattern	Omni-directional
Ground Plane Independent	Yes
Mechanical Data
Available Colours	Black
Length (mm)	131
Width (mm)	21.7
Height (mm)	7
Operating Temperature	-30 / + 70°C
Mounting Data
Mounting Type	Glass Mount; Adhesive Mount
Mounting Method	Adhesive Pad
