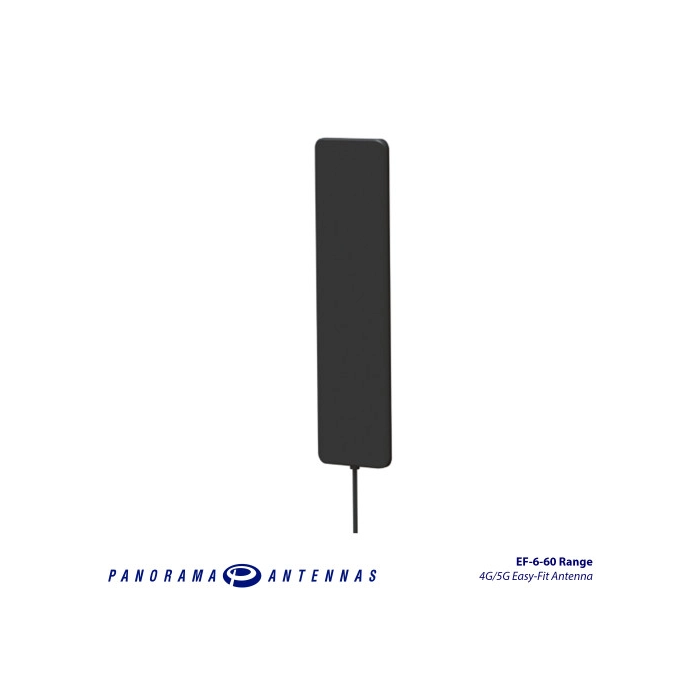

EF-6-60 4G/5G Easy-Fit Antenna
4G/5G Easy-Fit Antenna that supports the full range of 2G/3G/4G and 5G frequencies globally
Key Features:
- Compact Solution
- Multi-Purpose Antenna
- Cost-Effective Solution
- 4G/5G LTE Ready Covering 600-6000MHz
- Discrete Antenna for Mounting on Non-Conductive Surfaces
- Supplied with EN45545-2 Certified Cable
Using the supplied automotive industry-grade adhesive pad, these paddle-style antennas can be easily installed on a device housing, non-conductive panel, or vehicle windscreen.
The antenna is ultrawideband and ground plane independent, making it ideal for machine-to-machine and mobile data applications all over the world. The EF-6-60 is designed to support the full range of 2G/3G/4G and 5G frequencies globally, covering 617-960 / 1427-6000MHz.
The antenna is made of weather-resistant plastic and can be used in semi-exposed environments.
Key Features:
- Compact Solution
- Multi-Purpose Antenna
- Cost-Effective Solution
- 4G/5G LTE Ready Covering 600-6000MHz
- Discrete Antenna for Mounting on Non-Conductive Surfaces
- Supplied with EN45545-2 Certified Cable
| Part No. | ||
| EF-6-60-3FAKDJ | EF-6-60-3SP | |
| Electrical Data | ||
| Frequency Range (MHz) | 617-960, 1427-6000 | |
| Typical VSMR | <2.5:1 | |
| Peak Gain: Isotropic** | 617-960MHz: 2dBi | |
| 1427-2170MHz: 3.5dBi | ||
| 2200-2700MHz: 4.5dBi | ||
| 3400-4200MHz: 4.5dBi | ||
| 4900-6000MHz: 6dBi | ||
| Typical Efficiency*** | 617-960MHz: >55% | |
| 1427-2700MHz: >90% | ||
| 3400-6000MHz: >85% | ||
| Polarisation | Vertical | |
| Pattern | Omni-directional | |
| Impedance | 50Ω | |
| Max Input Power (W) | 10 | |
| Mechanical Data | ||
| Dimensions (mm) | Length: 197 (7.75”) | |
| Width: 52 (2.04”) | ||
| Depth 8.5 (0.33”) | ||
| Material | ASA | |
| Operating Temp (°C) | -40° / +80°C (-40°/ 176°F) | |
| Colour | Black | |
| Mounting Data | ||
| Type | Acrylic adhesive pad | |
| Cable Data | ||
| Type | FR RG174 (meets UN ECE R118.03 and EN45545-2) | |
| Diameter | 2.8 (0.10”) | |
| Length | 3 (10’) | |
| Termination | FAKRA D Jack | SMA Plug |
* VSWR measured with 0.5m (1.5’) of RG174 cable on perspex sheet.
** Typical Peak gain simulated in CST Microwave Studio on perspex sheet with 175mm (7”) cable.
***Typical Efficiency simulated in CST Microwave Studio on perspex sheet with 175mm (7”) cable.
