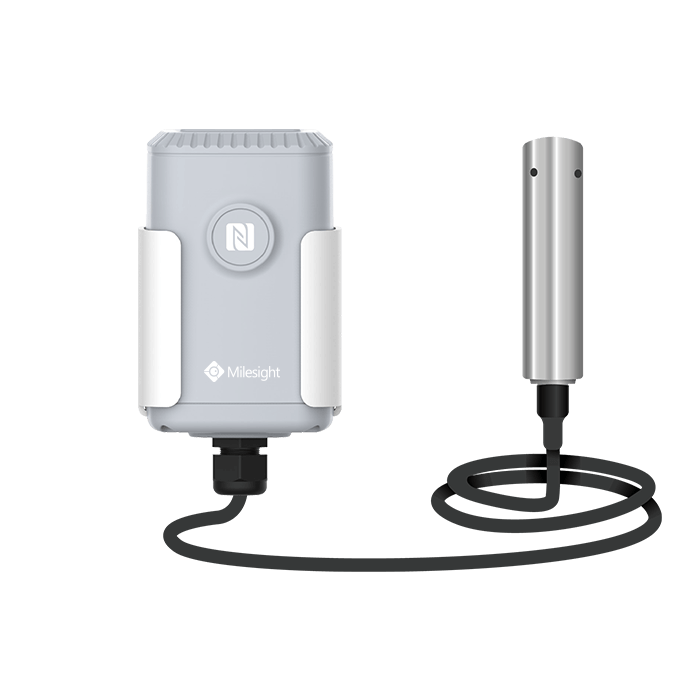

EM500-SWL LoRaWAN Submersible Water Level Sensor

In stock
Brand: Milesight IOT

Lorawan Submersible Water Level Sensor

Enquire Now
Enquire about this product:

The EM500-SWL is made to measure liquid levels in challenging settings and communicate data through LoRaWAN. With this low-power technology, the EM500-SWL may operate on a 19000 mAh battery for up to ten years. The Milesight LoRaWAN gateway and Milesight IoT Cloud solution enable users to remotely and graphically control all sensor data. Applications like tank level monitoring, river level monitoring, etc. frequently employ the EM500-SWL.

Key Features:

  • Stainless probe with corrosion resistance
  • Ultra-wide-distance transmission up to a line of sight of 10km
  • IP66 waterproof enclosure for harsh environment applications
  • Built-in 19000 mAh replaceable battery and works for 10 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

This product is listed in Industrial Automation, Mining, Milesight IOT
LoRaWAN Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Range 3m/5m/10m H2O (Customizable up to 200m)
Accuracy ±0.5% FS
Physical Characteristics Probe Length At least should be 1-1.5m longer than measuring range
Power Supply 19000 mAh Li-SOCL2
Operating Temperature Transceiver: -30°C to +70°C Pressure Sensor: -10°C to +60°C
Ingress Protection IP66 (IP67 as required)
Dimension 105.4 × 71 × 69.5 mm (Probe and cable are not included)
Mounting DIN rail, wall
