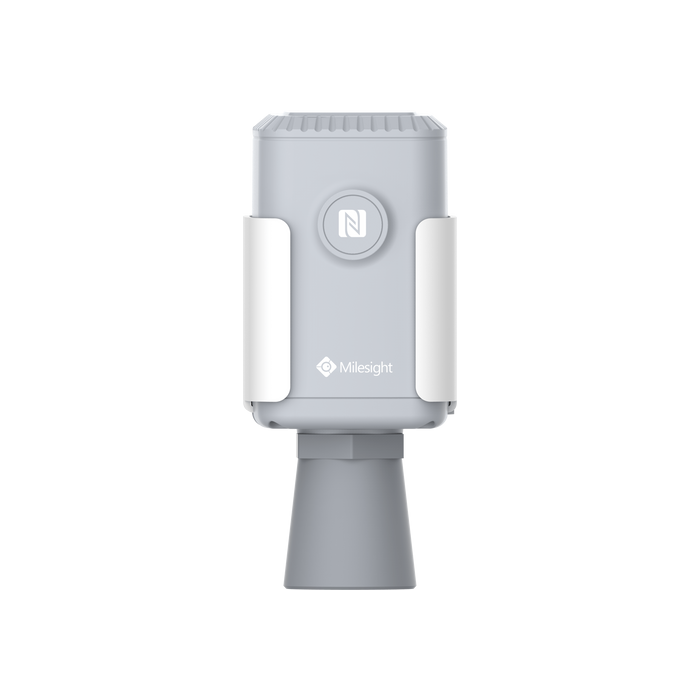

EM500-UDL Ultrasonic Distance/Level LoRaWAN Sensor

SKU: EM500-UDL-915M-W050

LoRaWAN Ultrasonic Distance/Level Sensor

Description

The EM500-UDL delivers highly accurate distance measuring in a range of difficult situations, including flood monitoring, wastewater management, and grain or fertiliser fill level monitoring. Ultrasonic waves are emitted and reflected from adjacent objects, which are used to make the measurement.

Key Features

  • 19000 mAh Li-SOCL2 battery
  • NFC enabled
  • IP67 rated
  • Easy Installation
  • Suit Applications: water, ground, trash can

Download

More Information

Specifications
LoRaWAN Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Sensor Range EM500-UDL-W050: 0.3-5m
EM500-UDL-W100: 0.5-10m
Resolution 1 mm
Accuracy ±1%
Physical Characteristics Power Supply 19000 mAh Li-SOCl2
Open Sans Regular -20°C to +70°C
Ingress Protection IP66
Dimension 156.1 × 71 × 69.5 mm
Mounting Wall, DIN Rail and Pole Mounting
