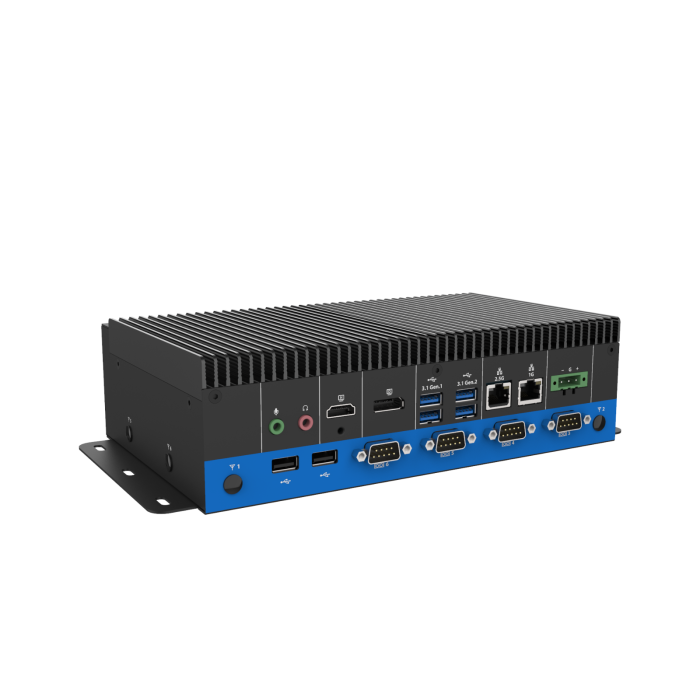

EMS-TGL-Marine Fanless Rugged Embedded System
11th Generation Intel® Core™ i7/i5/i3 Marine Fanless Rugged Embedded System
Key Features:
- 11th Gen Intel® Core™ i7/i5/i3 BGA Processor
- 2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
- 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 6-COM, 2-LAN, 1-8bit GPIO
- Wide Operating Temp. -40°C ~ 60°C
- Wide range DC power input from +9~36V
- dTPM 2.0, vPro, iAMT 15.0
- CE, FCC Class A, IEC 60945 Certified
Description
Product Overview
The Avalue EMS-TGL-Marine is a rugged marine embedded computer designed for maritime navigation, monitoring and onboard control applications. Powered by Intel Tiger Lake processors, it delivers reliable computing performance for vessel automation, surveillance, communication and marine edge systems. With fanless operation, wide power input support and marine-focused durability, the EMS-TGL-Marine is engineered for stable operation in demanding offshore and marine environments.
Key Features
Intel Tiger Lake Performance
-
Intel Tiger Lake processor platform for marine and industrial workloads
-
Designed for navigation, automation and monitoring applications
-
Integrated graphics support for multimedia and display systems
-
Suitable for continuous onboard operation
Rugged Marine Design
-
Fanless construction for silent operation and reduced maintenance
-
Designed for harsh marine and offshore environments
-
Resistant to vibration and challenging operating conditions
-
Compact embedded form factor for vessel integration
Flexible Connectivity
-
Multiple LAN ports for onboard networking and communication
-
USB interfaces for peripherals and connected marine equipment
-
Serial communication support for industrial and maritime systems
-
Display outputs for bridge and monitoring displays
Wide Power Input Support
-
Wide DC power input range for marine power systems
-
Designed for stable operation under fluctuating power conditions
-
Suitable for vessel and transport electrical environments
-
Supports reliable continuous operation
Expansion and Storage
-
M.2 and expansion support for wireless and storage modules
-
SSD storage support for reliable data logging and system performance
-
Designed for scalable embedded deployments
-
Suitable for marine surveillance and edge applications
Applications and Use Cases
The EMS-TGL-Marine is suitable for:
-
Marine navigation and bridge systems
-
Vessel automation and monitoring
-
Maritime surveillance and recording
-
Offshore communication systems
-
Marine edge computing and control applications
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
11th Gen Intel® Core™ Processor i7/i5/i3 Marine Fanless Rugged Embedded System
SKU: EMS-TGL-W85-A1-9R (i7-1185GRE)
SKU: EMS-TGL-W45-A1-9R (i5-1145GRE)
SKU: EMS-TGL-W15-A1-9R (i3-1115GRE)
