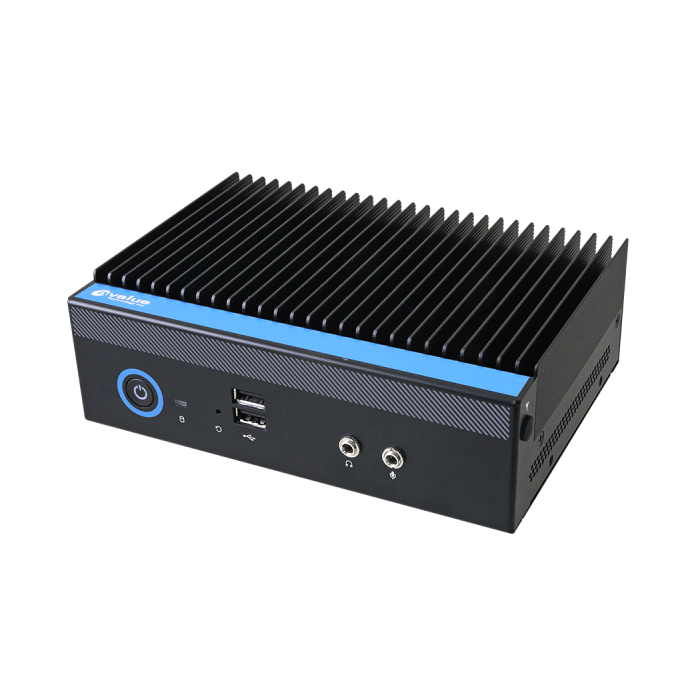

EPC-ASL Fanless Compact PC with Intel N97

SKU: EPC-ASL-N97-A1-1R



Intel® Processor N97 Fanless Compact System

Key Features:

  • Intel® Processor N97
  • 1-DDR5 4800MHz SO-DIMM socket, Max. up to 16GB
  • Intel® UHD Graphics
  • Dual Expansion Slot M.2, Key-E/B for Wi-Fi, LTE, SSD, I/O module
  • Rich I/O, 6-USB, 1-HDMI, 1-DP, 2-LAN(2.5GbE), 2-RS232, 1-Mic-in, 1-Line-out
  • Wide Range DC Power Input, +12V/24V
  • Fanless Operating Temp, 0 ~ 50°C
  • Default dTPM 2.0, Wall Mount Kit
Datasheet

Description

The EPC-ASL from Avalue is a compact fanless embedded system designed to meet the demands of edge computing in environments such as smart manufacturing, intelligent retail, traffic monitoring, and medical applications. Powered by the Intel® Processor N97 (Alder Lake-N) with speeds up to 3.60 GHz, it supports up to 16GB of DDR5 4800MHz SO-DIMM memory for high-efficiency performance with low power consumption.

This unit integrates Intel® UHD Graphics and provides HDMI 2.0b and DP 1.4a video outputs, supporting resolutions up to 4096 x 2160 at 60Hz. Connectivity options include six USB ports (USB 3.2 and 2.0), two RS-232 serial ports, dual 2.5GbE LAN ports, audio jacks, and dual M.2 slots (Key-E and Key-B), which allow for Wi-Fi, LTE/5G modules, or additional SSD storage.

For system integrity and secure operations, the EPC-ASL is equipped with TPM 2.0. It supports a wide-range DC power input (+12V/24V) and operates within a temperature range of 0°C to 50°C, with storage support from -30°C to 70°C. The system is designed for durability and has passed rigorous vibration, shock, and drop tests. It is supplied with a wall-mount kit for straightforward installation, making it a versatile and reliable choice for industrial and commercial edge computing deployments.



Download

Datasheet

More Information

Brand Avalue Technology Inc
Specifications

System Information

  • Processor

    Intel® Processor N97 (6M Cache, up to 3.60 GHz)

  • System Memory

    1 x 262-pin DDR5 4800MHz SO-DIMM socket, Max. up to 16GB

  • BIOS Information

    AMI BIOS, 256Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

  • H/W Status Monitor

    Monitoring System Temperature and Voltage with Auto Throttling Control

  • TPM

    On Board TPM 2.0

  • SBC

    ECM-ASL

Expansion

  • M.2

    1 x M.2 Key-B, (3042/3052/2242 (PCIe x1, USB 3.2 GEN1,USB 2.0)
    1 x M.2 Key-E, (2230, 1 x PCI-e x1, USB 2.0 Signal)

Storage

  • M.2

    1 x M.2 (Key-B, 2242, PCIe x 1)

  • 2.5 Drive Bay

    1 x 2.5 Drive Bay (SATA3, 7mm)

Front I/O

  • USB

    2 x USB2.0

  • Power Button

    1 x Power Button

  • Reset Button

    1 x Reset Button

  • LED Indicator

    1 x Power on/off LED
    1 x Storage Access LED

  • Audio

    1 x Mic-in
    1 x Line-out

Rear I/O

  • USB

    3 x USB 3.2 Gen2
    1 x USB 2.0

  • COM Port

    2 x RS232

  • LAN Port

    2 x RJ-45 (2.5GbE)

  • DP

    1 x DP 1.4a

  • HDMI

    1 x HDMI 2.0b

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover

  • AC/DC Input

    1 x Lockable DC Jack

Display

  • Graphic Chipset

    Intel® UHD Graphics

  • Resolution

    HDMI 2.0b Max resolution 4096 x 2160@60Hz
    DP 1.4a Max resolution 4096 x 2160@60Hz

Audio

  • Audio Codec

    Realtek ALC888S HD Audio Decoding Controller

Ethernet

  • LAN Chipset

    2 x Intel Ethernet Controller I226V

  • Data Rate Per Port

    10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

  • Voltage Input Spec.

    Typical +12V/24V

  • Power Mode

    AT/ATX (ATX is Default Setting)

  • Adapter

    60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
    Note 1: 60W for general mode (storage, communication, display, USB port, room temp.)
    Note 2: 120W for full load mode (general mode pluses max. workload and operating temp.)

Software Support

  • OS

    Win10, Win11, Linux

Certification

  • Certification Information

    CE, FCC Class B, UKCA

Mechanical & Environmental

  • Operating Temp.

    With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow

  • Storage Temp.

    -30~70C° (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    177 x 127 x 57mm(6.97" x 4.96 x 2.24”)

  • Vibration Test

    With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis

  • Shock Test

    With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

  • Mounting Kit

    Wall Mount Kit (Default)

Ordering Information

EPC-ASL-N97-A1-1R
Intel® Processor N97 Fanless Compact System
