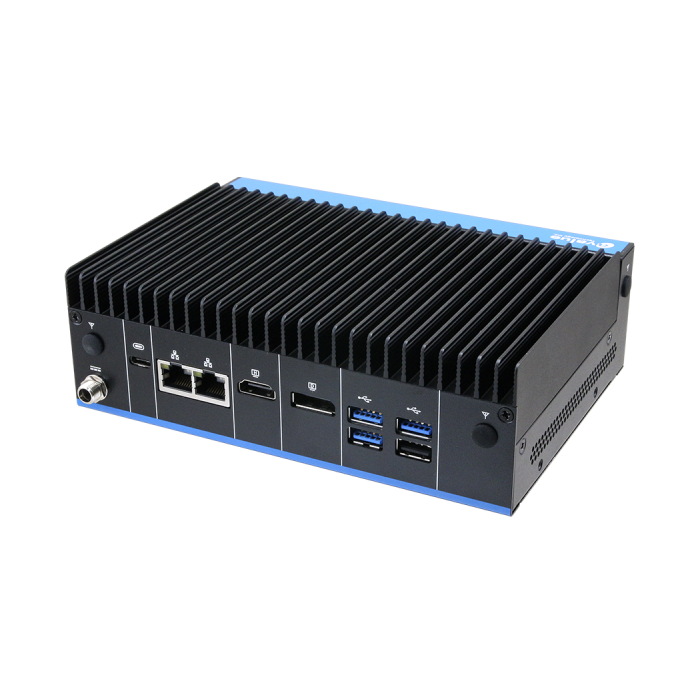

EPC-RPU 13th Gen Core Fanless Compact System

SKU: EPC-RPU-I5E-A1-1R/EPC-TGU-I3E-A1-1R

13th Gen Intel® Raptor Lake-P Fanless Compact System

Key Features:

  • Intel® 13th Gen Raptor Lake-P Core™ Processor
  • Intel® Iris® Xe / UHD Graphics for 13th Gen Intel® Processors
  • One SO-DIMM Socket, Max. Up Max. up to 32GB DDR5 5200
  • Triple Display, HDMI 2.0, DP 1.4 , USB Type C (Support DP)
  • Dual Intel® 2.5 Gigabit Ethernet
  • Triple Storage , 2.5" Drive Bay, M.2 Key B, Key-M (NVMe)
  • Support TPM2.0, RAID 0/1, Wall Mount
  • 12-24V DC Wide Range Power Input
Datasheet

Description

The EPC-RPU is a fanless, compact computing system powered by Intel's 13th Generation Raptor Lake-P Core™ processors, designed for industrial and embedded applications. It offers processor options, including the Intel® Core™ i5-1335UE and i3-1315UE, both with a 15W thermal design power, ensuring efficient performance. The system supports Intel® Iris® Xe or UHD Graphics, providing enhanced visual capabilities suitable for various display requirements.​

Equipped with a single SO-DIMM socket, the EPC-RPU supports up to 32GB of DDR5 4800MHz memory, facilitating smooth multitasking and data processing. It supports triple display output through HDMI 2.0, DisplayPort 1.4, and USB Type-C with DisplayPort support, offering versatile connectivity for multiple monitors. Networking capabilities include dual Intel® 2.5 Gigabit Ethernet ports, ensuring high-speed and reliable network connections.​

The system provides multiple storage solutions, including a 2.5" drive bay, M.2 Key-B, and M.2 Key-M (NVMe), accommodating various storage needs. Security and reliability are enhanced with support for TPM 2.0 and RAID 0/1 configurations. Designed with a 12-24V DC wide-range power input, the EPC-RPU offers flexibility for diverse industrial environments. Its rugged, fully integrated, and ultra-thin design, along with expandable I/O interfaces and high-speed connectivity, makes it ideal for IoT applications and deployment in space-constrained settings.

Download

Datasheet
Manual

More Information

Brand Avalue Technology Inc
Specifications

System Information

  • Processor

    Intel® Core™ i5-1335UE Processor (15W)
    Intel® Core™ i3-1315UE Processor (15W)

  • System Memory

    1 x 262-pin SO-DIMM socket Max. up to 32GB DDR5 4800MHz

  • I/O Chipset

    EC iTE IT5782VG

  • BIOS Information

    AMI BIOS, 256Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

  • H/W Status Monitor

    System temperature monitoring and Voltages monitoring

  • RAID

    RAID 0/1 (SATA)

  • TPM

    Onboard TPM 2.0 IC

  • SBC

    ECM-RPL

Expansion

  • M.2

    1 x M.2 Key-B 3042/3052/2242 (SATA3, USB3.0, w/SIM Card Slot)
    1 x M.2 Key-M 2280(PCIe,Gen4x4)
    1 x M.2 Key-E 2230(PCIe, USB2.0)

Storage

  • M.2

    1 x M.2 Key-B 2242 (SATA3)
    1 x M.2 Key-M 2280 (NVMe, PCIe Gen4 x 4)

  • 2.5 Drive Bay

    1 x Internal 2.5 Drive Bay (7mm)

Front I/O

  • USB

    2 x USB 2.0

  • Power Button

    1 x Power Button

  • Reset Button

    1 x Reset button

  • COM Port

    2 x RS232/422/485

  • LED Indicator

    1 x Power on/off LED
    1 x Storage Access LED

  • Audio

    1 x Mic-in
    1 x Line-out

Rear I/O

  • USB

    3 x USB 3.2 Gen2
    4 x USB 2.0
    1 x USB Type C support DP/USB 3.2 Gen 1/PD 5V x 3A

  • LAN Port

    2 x RJ45

  • DP

    1 x DP 2.1

  • HDMI

    1 x HDMI 2.0b

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover

  • AC/DC Input

    1 x Lockable DC Jack

Right I/O

  • Antenna

    1 x Antenna Mounting with Dust Protection Cover

Left I/O

  • Antenna

    1 x Antenna Mounting with Dust Protection Cover

Display

  • Graphic Chipset

    Intel® Iris®Xe/UHD Graphics for 13th Gen Intel® Processors

  • Resolution

    1 x DP 1.4: Max. 7680 x 4320@60Hz
    1 x HDMI 2.0b: Max. 4096 x 2160@60Hz
    1 x DP 1.4 (from USB Type C): Max. 4096 x 2304@60Hz

Audio

  • Audio Codec

    Realtek ALC888S

Ethernet

  • LAN Chipset

    2 x Intel® I226LM

  • Specification

    2 x 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

  • Voltage Input Spec.

    Typical 12V/24V Power Input

  • Voltage Input Connector

    Lockable DC Jack

  • ACPI

    Single power ATX Support S0, S3, S4, S5
    ACPI 5.0 Compliant

  • Power Mode

    AT/ATX (ATX is default setting)

  • Adapter

    Input: 100 ~ 240Vdc/ 50 ~ 60Hz
    Output: 12V/10A AC-DC 120W Adapter

Software Support

  • OS

    Win10, Win11, Linux

Certification

  • Certification Information

    CE, FCC, Class B, UKCA

Mechanical & Environmental

  • Operating Temp.

    With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
    With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow

  • Storage Temp.

    -30~70C° (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    177x 126 x 57mm (6.97” x 4.94” x 2.24")

  • Vibration Test

    With SSD : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

  • Shock Test

    With SSD: 10 Grms, IEC 60068-2-27, Half Sine, 11ms

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces

  • Mounting Kit

    Wall Mount Kit

Ordering Information

EPC-RPU-I5E-A1-1R (i5-1335UE)
EPC-TGU-I3E-A1-1R (i3-1315UE)
