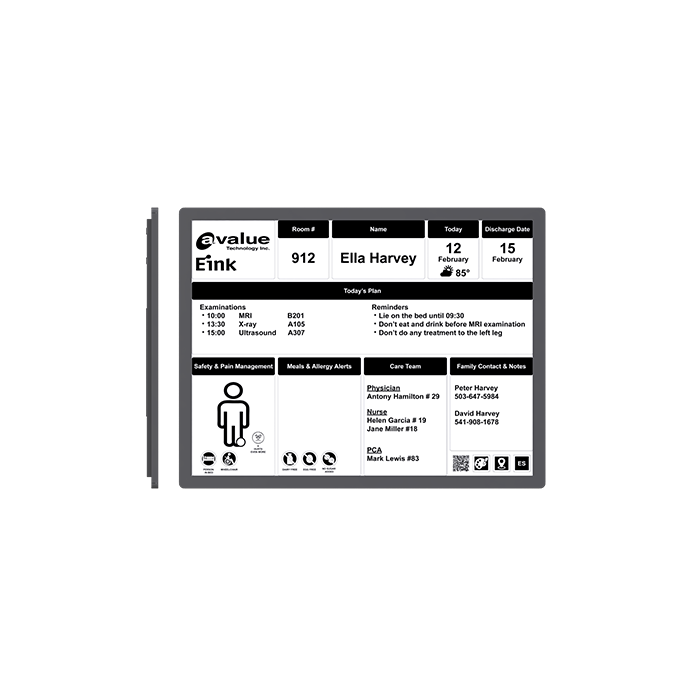

Avalue EPD-42T is a 42" E Ink Monochrome ePaper Display with integrated high performance i/MX 7Dual processor. This display combines a monochrome touch screen which is sunlight readable and does not require a backlight providing ultra low power consumption. The EPD-42T offers I/O including 3x USB ports, 1x LAN and 2x Serial ports.
·42" E Ink Monochrome ePaper Display
·Built-in Touch Screen
·High Performance i.MX 7Dual Processor
·Very Low Power Consumption
·No Power Needed to Maintain Display Image
·Sunlight Readable and Doesn't Require a Backlight
2 x TTL Serial I/F ; Supports Optional TTL to RS-232 Converter ; Supports Optional TTL to RS-485 Converter Supports Optional TTL to USB Converter
Wireless Communication
Bluetooth
Optional
DC In/Out Characteristics
Power Type
DC-12V
Working Voltage
DC-12V
Mechanical
Power Connector Type
Lockable DC Jack
Weight
6.5kg
Shipping Dimension
983 x 876 x 121 mm
Shipping Weight
12.1kg
Color
Black
Audio
Speaker Output
2 x 0.5W Speakers
Reliability
EMI Test
CE/FCC-B
Operating Temperature
0°C ~ 40°C (w/SSD, mSATA) ambient with air flow
Operating Humidity
5% ~ 90% relative humidity, non-condensing
Unit Weight
6.5kg
Storage Temperature
-20°C ~ 60°C
Packaging Vibration Test
With On-Board 8GB eMMC/On-Board 1GB DDR3L: 0.5 Grms, IEC 60068-2-64, Random, 5~ 500Hz, 1hr/axis (Only for Z-axis)
Packaging Drop Test
Avalue Standard Test Criteria (Change to use ISTA-1A)
Certifications
Certification Information
CE (EN 62368-1) FCC Part 15 Class B
Ethernet
LAN Chipset
ICPlus IP1001M Gigabit Phy
LAN Port
1 x RJ-45 Supports 10/100/1000 Base-T
Power Requirement
Adapter
Input: 100~240Vac/50~60Hz ; Output: 60W (12V/5A)
Mechanical & Environmental
Operating Temperature
0°C ~ 40°C (w/SSD, mSATA) ambient with air flow
Storage Temperature
-20°C ~ 60°C
Operating Humidity
5% ~ 90% relative humidity, non-condensing
Weight
6.5Kgs
IP Rating
Front IP65 / Rear IPX1
VESA
100x100
Dimensions(W x L x D)
918.8 x 704.6 x 37.6 mm
Power Requirement
DC-12V
Software Support
OS Information
Android / Linux
In-Box Accessory
Accessory
1 x Power Adapter 1 x US Power cord 1 x Wall mounting bracket 1 x Wall locking bracket 1 x Pan head screws (D6.8, M4*10mm) with washer (D8.1) 4 x Thumb screws (M4*10L) 2 x Pan head screws (D6.85, M4*6mm)
Ordering Information
Ordering Information
EPD-42T-3 42" E Ink/NXP EMX-IMX7/PCAP/LAN/USB/Front IP65/12V/CE/FCC/Landscape/Portrait
