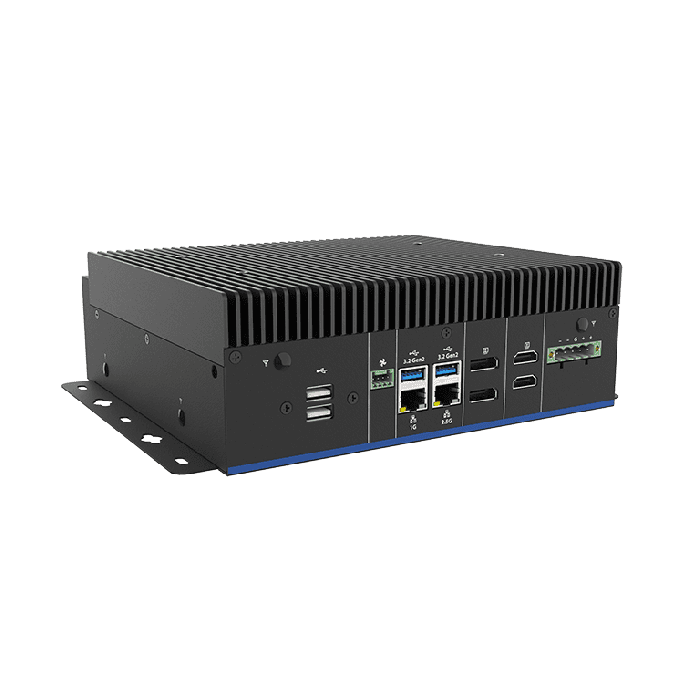

EPS-RPR Fanless Rugged Embedded PC with 14th Gen CPU

The Avalue EPS-RPR is a compact, fanless embedded computing system designed for industrial applications requiring high performance and durability. It supports Intel® 14th Gen Core™ i9/i7/i5/i3 processors with either the Q670E or H610E chipset, offering flexibility for various performance needs. The system accommodates up to 64GB of DDR5 5600MHz memory through two SO-DIMM sockets.

For storage, the EPS-RPR includes a 2.5" drive bay and two M.2 slots (Key-B and Key-M), supporting SATA3, PCIe Gen 4x4, and NVMe SSDs. Expansion options feature one mPCIe slot and additional M.2 slots (Key-E and Key-B), enabling integration of various modules such as Wi-Fi, LTE, and 5G.

The system offers rich I/O interfaces: four USB 3.2 Gen 1 ports, two USB 3.2 Gen 2 ports, two USB 2.0 ports, six COM ports (four RS-232/422/485 and two RS-232), dual HDMI 2.0b, dual DisplayPort 1.4, and dual LAN ports (Intel® I226-LM and I219-LM) supporting 2.5GbE and 1GbE respectively. Audio is managed by the Realtek ALC888S codec, providing mic-in and line-out functions.

Designed to operate in harsh environments, the EPS-RPR functions within a temperature range of -30°C to 70°C and humidity up to 95% at 40°C (non-condensing). It meets IP50 standards and includes wall mount and DIN rail mounting options. The system supports Windows 10, Windows 11, and Linux operating systems, and includes features like TPM 2.0, RAID 0/1 (Q670E SKU only), and Intel® AMT for remote management. Power input ranges from 12V to 28V DC, accommodating various industrial power setups.
