EWM-4301AV 43" High Brightness Stretch Rail Display

Product Overview

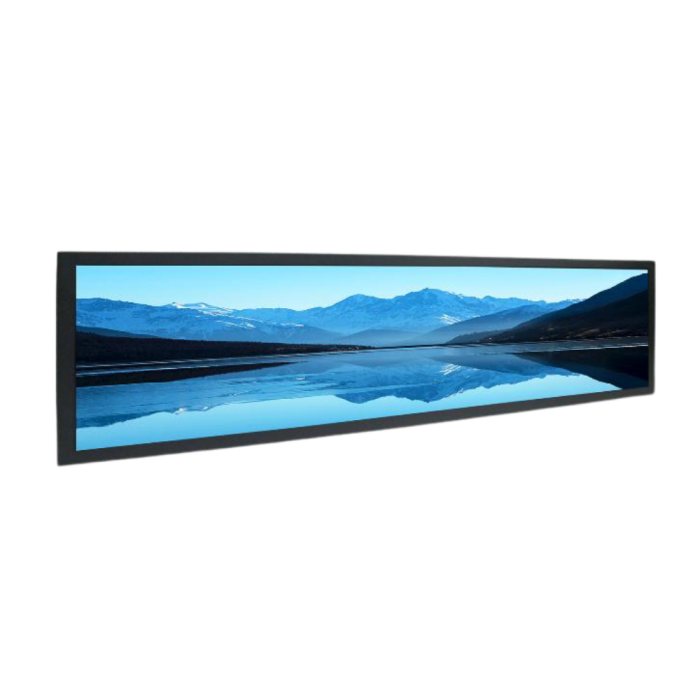

The EWM-4301AV is a 43-inch high-brightness DRMD LCD monitor designed for sunlight-readable applications in rail, transport and outdoor information systems. With a 1000 nit panel, Hi-Tni liquid crystal technology, and a wide 16:3 aspect ratio, it delivers clear ultra-wide content for passenger information, digital signage and control systems. The display offers a 3840 x 720 resolution, 178-degree viewing angles in all directions and a wide operating temperature range from -20 °C to 60 °C, which makes it suitable for harsh and changing environments. Long-life LED backlight design with a 50,000-hour MTBF and a defect-free LCD back policy helps ensure reliability and reduced maintenance over the life of the installation.

Key Features

High Brightness Ultra Wide Display

• 43 inch DRMD LCD panel with 3840 x 720 resolution and 16:3 aspect ratio

• Sunlight readable 1000 nit brightness for outdoor and high ambient light areas

• Hi-Tni panel technology is suitable for panel temperatures from -40 °C to 110 °C

• Wide viewing angles of 178° horizontal and 178° vertical for clear visibility along the platform or vehicle interior

Rugged and Reliable Operation

• Wide operating temperature range from -20 °C to 60 °C for indoor and semi-outdoor locations

• Storage temperature from -20 °C to 60 °C, with 5 percent to 90 percent humidity tolerance

• LED backlight with 50,000-hour MTBF for extended service life

• LCD back defect-free policy provides high image quality and consistency

Power and Connectivity

• Input power range from 100 to 220 V AC with a typical power consumption of 80 W

• Input interfaces include RS-485, USB, two HDMI ports, one DisplayPort and an earphone output for audio

• VESA 200 x 200 mm mounting pattern for flexible installation on walls, brackets or enclosures

Certifications and Compliance

• Certified to EN50155 for railway applications

• Certified to NFPA 130 for fire safety in fixed guideway transit and passenger rail systems
