Shop F200- Intel Celeron 2807

End of Life

SKU: F200-1

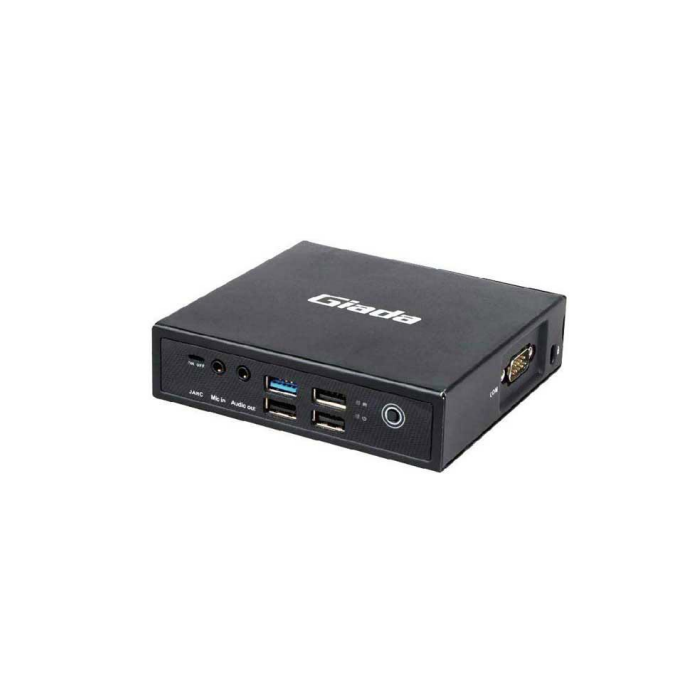

Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor

Datasheet

Description

Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor

· Intel Cherry Trail Processor

· Onboard 2GB/4GB DDR3L Memory

· 1 x HDMI, 1 x VGA

· eMMC Onboard 32GB/64GB, 1 x TF Card Reader

· 1 x USB3.0, 3 x USB2.0, 1 x RS232

· 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM slot

Giada.F200.ProductSPEC.V1.0.pdf

* You have to Login or Register to download this file

Specifications

F200		N2807
Processor	CPU	Intel^® Celereon 2807
	Frequency	1.44 GHz (up to 1.92 GHz)
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR3L-1600MHz
	Socket	2GB Onboard
	Max Size	2GB
Graphics	GPU	Intel^® HD Graphics
	Graphic Engine	DirectX11, OpenGL4.0 ,OpenCL 1.2
	HDMI	1 x HDMI(Max.2560 x 1600@24Hz)
	VGA	1 x VGA(Max.2048 x 1536@60Hz)
Network	Controller	Realtek RTL8111F Gigabit Ethernet
Network	Interface	1 x RJ45
I/O	USB	3 x USB 2.0, 1 x USB 3.0
	Serial Port	1 x RS232
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Mini-PCIe	1 x Fulll-size Mini-PCIe for 4G
	SIM	1 x SIM Slot
	WiFi+BT on Board	1 x WiFi +BT Module Onboard
Storage	mSATA	1 x slot
Storage	Card Reader	1 x TF Card Reader
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
	Remote Control	By IR Controller for Power On
	Wake On Lan	Yes
Operation System	Windows	Windows 8.1/10(64-bit)
	Android	Not Supported
	Linux	Supported
Power	Power Type	DC-IN
Power	Power Adapter	12V/2A
Mechanical	Dimensions (W × D × H)	116.6mm x 107.4mm x 30mm(4.59"x4.23"x1.18")
	Fanless	Yes
	Construction	Metal
	Mounting(Optional)	Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Environment	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC
