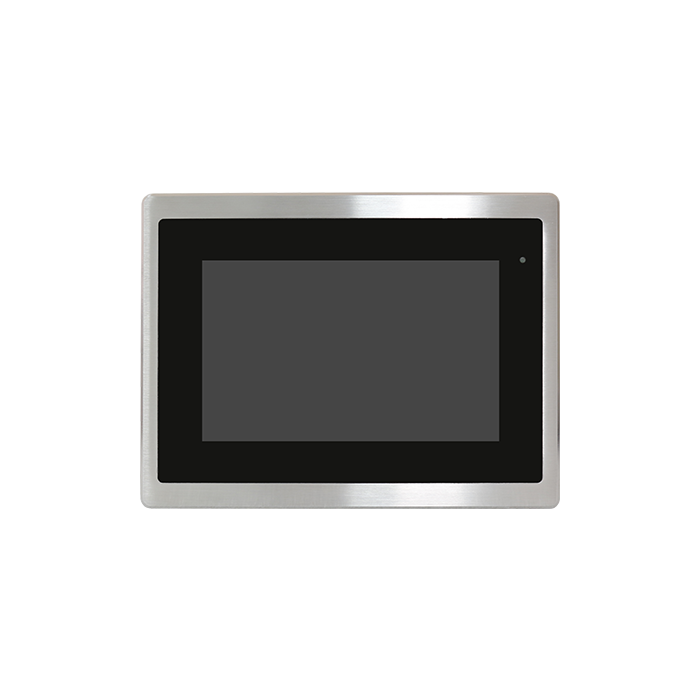

FABS-807 7” Fanless Industrial Panel PC

In stock
Brand: Aplex Technology Inc.

7” Fanless Industrial Compact Size Panel PC Celeron N2930 4GB DDR3L DC 9~36V High Bright Option

Enquire Now
Enquire about this product:

The APLEX FABS series is the ideal solution for a sterile environment. It can prevent sand, dirt, mould, or bacteria from contaminating food or other materials during the manufacturing process. We also devote ourselves to achieving food safety standards with optional EN 1672-2 certification. APLEX's new food safety design HMI focuses on improving food and beverage, pharmaceutical, and consumer packaged goods processing operations.

Key Features:

  • Intel® Celeron™ N2930 1.83GHz
  • 7.1” Colour TFT LCD
  • Max. Resolution 800 x 480
  • Max. Colours 262K
  • Brightness: 350 or 1000 nit
  • Operating Temperature 0~40°
  • Power Input 9~36V

This product is listed in Industrial Automation


  • CPU: Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz)
  • System Chipset: SoC
  • Memory Onboard: 4GB DDR3L SDRAM

IO Port

  • USB: 2 x USB 3.0 type A
  • Serial/Parallel:
    • 1 x RS-232/422/485 DB-9, default RS-232(COM1)
    • 1 x RS-232 DB-9(COM2)
  • LAN: 2 x GbE LAN RJ-45
  • Audio: 1 x Line Out
  • Power:
    • 1 x 3-pin DC Power input terminal
    • 1 x 2-pin connector for power on/off button
  • Option:
    • VESA Stand
    • 4G LTE/Wi-Fi/BT

Storage Space

  • HDD/SSD: 1 x MO-297 SATA SSD bay (Easy Accessible)
  • Others: 1 x Internal Micro SD / Micro SIM slot


  • Expansion Slot: 1 x Internal Mini-PCIe slot full size

Display (Standard/High Brightness Option)

Display Type: 7” TFT-LCD
Max. Resolution: 800 x 480
Max. Colour 262K
Luminance (cd/m2): 350 or `1000
View Angle: 140(H) /120(V) or 140(H) /130(V)
Contrast 400:1 400:1
Backlight Lifetime 50,000 hrs 50,000 hrs

Touch Screen
Projected Capacitive Touch (for P model)
Resistive Touch (for R model)
Glass (for G model)
Interface USB
Light Transmission(%) Resistive Touch: over 80%
Projected Capacitive Touch: over 90%

Power Input DC 9~36V
Power Consumption FABS-807P: 28W (MAX)

304 Stainless steel front bezel (Default)
316 Stainless steel front bezel (Optional)
Aluminium die-casting back cover
Mounting Panel mount, VESA mount 75 x 75
IP Rating IP66/IP69K compliant front bezel
Dimensions 217 x 163 x 40 mm
Net Weight 1.1 kg

Operating Temperature 0~50˚C/ -20~60°C (option)
Storage Temperature -30~70°C
Humidity 10 to 95% @ 40°C, non- condensing
Certificate R/P/G/RH/PH/GH Model: CE/FCC Class A
P/G Model: EN 1672-2 (option)

Operating System Support
Windows 10 IoT
