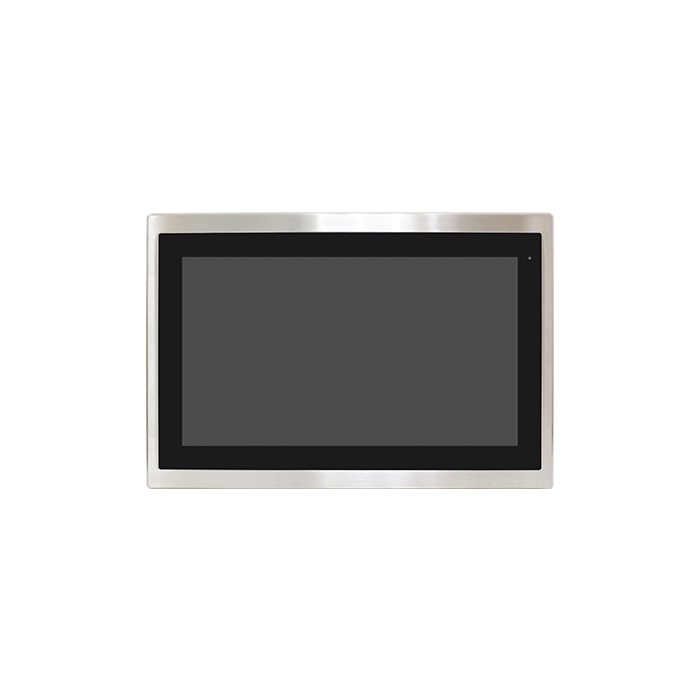

FABS-916BP/R(H) 15.6" Hygienic Design Compact Size Panel PC

System

CPU

Onboard 8th Gen Intel Core i3-8145UE Processor (2C/4T,2.2GHz)Intel Core i5-8365UE Processor (4C/8T,1.6GHz)

System Chipset

SoC

Memory

1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz

IO Port

USB

4 x USB 3.0 type A

1 x DB-9 connector, Including:

Serial / Parallel

* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable viajumper (COM1)

* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable

LAN

2 x GbE LAN RJ-45

Audio

1 x Line Out

DP

1 x DP

Power

1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector

VESALine-Out SW+Stand

4G LTE/Wi-Fi 4/5/6+/BT

4 x USB 2.0 (TB-528U4)

4 x USB 2.0 + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)

2 x COM (RS-232) (TB-528C2)

Option

1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)

2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)

2 x COM (RS-422/485, isolated) (TB-528C2I)

2 x CAN (TB-528CAN2)

1 x LAN + 2 x USB 2.0 (TB-528E1U2)

Backup Battery 21W/10.8V/1.95Ah(3S1P)

Storage Space

Storage

1 x M.2 M-Key slot (Support PCIe/SATA; 2242/2280, Default 2242)

Expansion

Onboard Expansion Bus

1 x Mini-PCIe slot (full size)

1 x Nano SIM Card Holder

Display

Standard

High Brightness Optional

Display Type

15.6" TFT-LCD

15.6" TFT-LCD

Max. Resolution

1366 x 768

1920 x 1080

1366 x 768

1920 x 1080

Max. Color

16.7M

16.7M

16.7M

16.7M

Luminance (cd/m2)

400

500

1000

1000

View Angle

170(H)/160(V)

170(H)/170(V)

160(H)/160(V)

178(H)/178(V)

Contrast

500:1

1000:1

500:1

1000:1

Backlight Lifetime

50,000 hrs

50,000 hrs

50,000 hrs

50,000 hrs

Touch Screen

Type

Projected Capacitive Touch (for BP model)Resistive Touch (for BR model)

Interface

USB

Light Transmission(%)

Resistive Touch: 80%Projected Capacitive: 90%

Power

Power Input

DC 9~36V

Power Consumption

TBD

Mechanical

Construction

SUS304 Stainless Steel Front Bezel (default) / SUS316L Stainless Steel Front Bezel (for option) / Aluminum Die-casting Back Cover

Mounting

Panel Mount, VESA Mount 100 x 100

IP Rating

IP66/IP69K Compliant Front Bezel

Dimensions

422 x 322 x 54.1 mm

Net Weight

TBD

Environmental

Operating Temperature

0~50 ̊C/ -20~60°C (option)

Storage Temperature

-30~70°C

Humidity

10 to 95%@ 40°C, non-condensing

Certificate

CE/FCC Class A / EN 1672-2 Compliant for P Model (optional)

Operating System Support

Windows 10 IoT, Windows 11

FABS-916BR

15.6" HD/FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-916BP

15.6" HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-916BR(H)

15.6" High brightnessHD/FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-916BP(H)

15.6" High brightness HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
