A 7-inch Android vehicle telematics terminal featuring a MediaTek octa-core processor, 4GB memory, 32GB eMMC storage, GNSS, NFC and extensive vehicle connectivity, with optional LTE and Wi-Fi/Bluetooth.
Key Features:
7-inch multi-touch display
Android 14 or later
MediaTek MT8390 octa-core processor
4GB memory and 32GB eMMC
GNSS and NFC
CAN with OBD2/J1939 support
AHD video input and HDMI output
9–36V DC vehicle power
Optional LTE and Wi-Fi/Bluetooth
Description
Product Overview

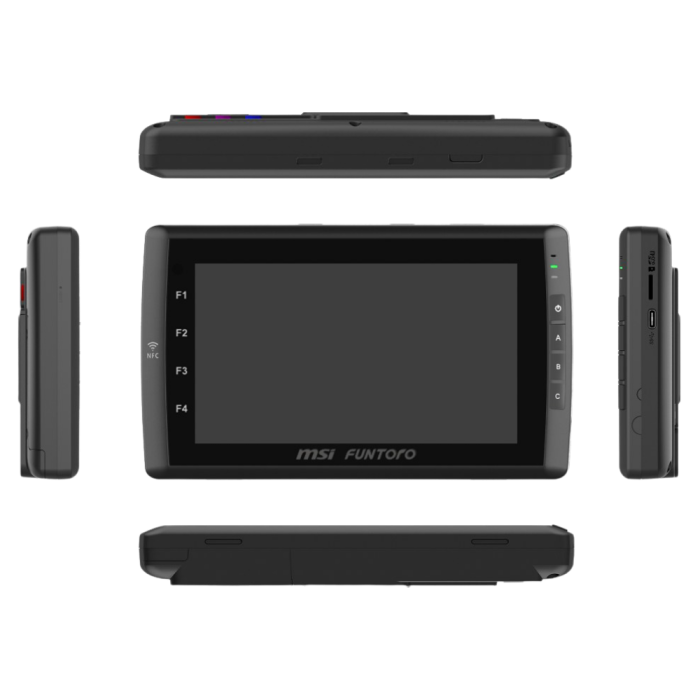

The FUNTORO MS-5730 Telematics AIO2 combines a 7-inch capacitive multi-touch display with Android 14 or later and a MediaTek MT8390 octa-core processor. It includes 4GB memory, 32GB eMMC storage, multi-constellation GNSS, NFC and integrated motion and ambient light sensors. Vehicle and peripheral interfaces include CAN with OBD2 and J1939 support, serial ports, digital inputs and outputs, Ethernet, USB, AHD video input and HDMI output. Designed for 12V and 24V vehicle power systems, it supports a 9–36V DC input range. Optional LTE and Wi-Fi/Bluetooth connectivity are available.
More Information
Brand
MSi (Micro-Star INT'L CO., LTD)
Specifications
System and display
Field
Value
Operating system
Android 14 or later
Processor
MediaTek MT8390
CPU configuration
Octa-core: 4 × Cortex-A78 at 2.2GHz + 4 × Cortex-A55 at 2.0GHz
Memory capacity
4GB
Memory type
Specification states “DDR4 4GB, LPDDR4X”; exact memory type requires confirmation
Internal storage
32GB eMMC
Display size
7 inches
Display technology
TFT LCD with LED backlight
Display resolution
1024 × 600 pixels
Touchscreen
Capacitive multi-touch
Navigation, sensors and wireless
Field
Value
GNSS
GPS L1 C/A; GPS, GLONASS, Galileo, BeiDou and QZSS
