Shop G330 6 Port Multi Signage Player

End of Life

Giada Technology Inc.

SKU: G330-B0000

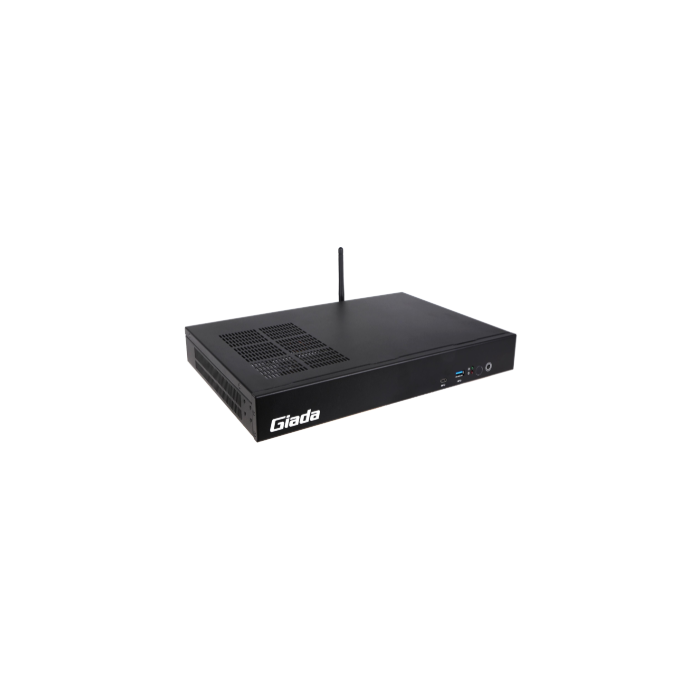

G330 Video-wall signage player, Intel® Kabylake/Skylake Processors

Datasheet

Description

Video-wall signage player

· Intel® Kabylake/Skylake Processors

· 2 x SO-DIMM DDR3L, Up to 32GB

· 6 x DP, Supporting 4K Display

· 1 x 2.5" SATA, 1 x mSATA

· 1 x Type-C USB3.0, 1 x USB3.0, 4 x USB2.0, 2 x RS232

· 2 x RJ45, 1 x Mini-PCIe for WiFi/BT

Data Sheet

Brand

Giada Technology Inc.

Specifications

G330		G330-B0000
Processor	CPU	Intel^® LGA1151 Socket 7^th/6^th Gen. Processor
	BIOS	AMI Source Code
	Chipset	H110
Memory	Type	DDR3L-1600MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	AMD Radeon™ 7750 GPU,DDR5 2GB
	Graphic Engine	DirectX11.1, OpenGL4.2 ,OpenCL 1.2
	DP	3 x 2DP Landscape Max.5760 x 2160
Network	Controller	Intel^® I219/I211 Gigabit Ethernet
Network	Interface	2 x RJ45
I/O	USB	1 x Type-C USB 3.0, 1 x USB 3.0, 4 x USB 2.0
	Serial Port	2 x RS232
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA
	Mini-PCIe2#	1 x Full-size Mini-PCIe for WiFi/BT
Storage	SATA	1 x 2.5" SATA
Storage	mSATA	1 x Full-size mSATA
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
	Remote Control	By IR Controller for Power On
Operation System	Windows	Windows 7/8.1/10(64-bit)
Operation System	Linux	Supported
Power	Power Type	AC
Power	Input Voltage	110V~220V
Mechanical	Dimensions (W × D × H)	350mm x 235.2mm x 43mm(13.78"x9.26"x1.69")
	Construction	Metal
	Mounting(Optional)	Wall Mounting and VESA Mounting(JZ300)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Environment	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC
