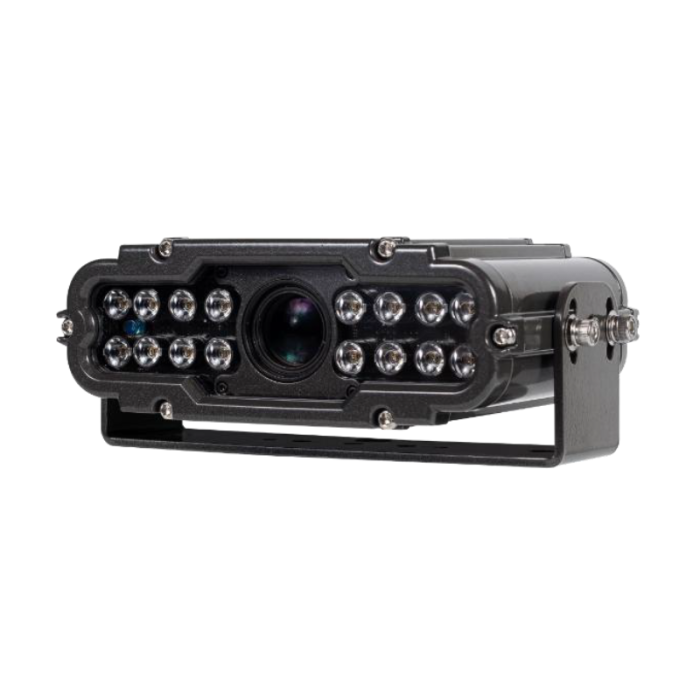

GPAL-0550M3G 3MP Motorized Global Shutter LPR AI Camera

SKU: GPAL-0550M3G


3MP Global Shutter 5~50mm Motorized Lens IP LPR Camera

Key Features:

  • 1/3.1” 3.2MP Global Shutter CMOS
  • 5~50mm Motorised Auto-Focus IR correction Lens
  • Max. 60FPS@3M (1920x1440), 60FPS@2M (1920x1080)
  • 1.2TOPs NPU Built-In
  • Individual shutter speed and AEW setting for  Day mode and Night mode
  • Quadruple Streaming (H.265, H.264, M-JPEG, JPEG)
  • Night Colour level adjustment (B/W & 5 steps)
  • Shutter limit (Min./Max.) setting
  • OnVIF (Profile S) standard
  • IP68 Grade Waterproof, Nitrogen-filled In
  • M12 A-Code 8PIN Male Connector
Datasheet

Description

Law enforcement, parking and other authorities can save time and resources by quickly reviewing and closing investigations with accuracy and flexibility with the AI-driven recognition software.

The global shutter captures the highest quality images without distortion. GPAL-0550M3G is an Outdoor IR All-in-one Motorised Camera which is equipped with a 3MP Global Shutter CMOS image Sensor. With the highest sensitivity sensor, it is especially superior in low-light conditions. As it supports simultaneous H.265, H.264 and MJPEG Video Compression, less network bandwidth and storage space are required.

It also delivers a high-quality video image at 60 fps @ 3MP (1920x1440) in progressive mode.



Download

CAD File
CGI Commands
Datasheet
Quick Guide
User Manual
* You have to Login or Register to download this file

More Information

Brand GPI Korea
Specifications

CAMERA

  • SoC: 64bit Quad Core RISC CPU (Developed & Manufactured in S.Korea)

  • Image Sensor: 3.2MP 1/3.1” Global Shutter CMOS

  • Lens: 5mm ~ 50mm Motorized Auto-Focus Lens

  • Effective Pixels: 2064(H) × 1554(V), approx. 3.18M pixels

  • Streaming: Quadruple Streaming (H.265, H.264, M-JPEG, JPEG)

  • Resolution:

    • 1920×1440, 1920×1080, 1280×1024, 1280×720

    • 720×480, 704×480, 640×480, 640×352, 320×240

  • Max. Frame Rate: 60fps @ 1920×1440

  • Bit Rate Control: VBR, CBR (H.264/H.265, 32K~16Mbps), CVBR

  • Shutter Speed: Auto, Manual, Flicker (1/30 ~ 1/30000)

  • Frequency Control: 60Hz or 50Hz

  • Privacy Masking: 8 privacy zones

  • Motion Detection: Up to 4 zones, adjustable sensitivity

  • Day & Night: TDN (Auto, Color, B&W, External)

  • White Balance: Auto, Preset, Manual

  • Video Analytics:

    • Intrusion detection, Line Crossing

    • Object counting, Object tracking

    • Tampering, General Detection, Abnormal Detection

  • AI Detection: Object Detection (Humans/Vehicles/Bicycles), Face Detection

  • Image Adjustment: Sharpness, Gamma, Contrast, D-WDR, Defog

NETWORK

  • LAN Interface: 10/100BaseT Ethernet auto sensing

  • Simultaneous Clients: Live-cast for up to 16 clients

  • Web Browsing: Multi Web Browsers, VLC

  • Developer Support: CGI API for RTSP

  • ONVIF: Profile S, T

  • Protocols: HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6), UDP, FTP, Telnet, HTTPS,
    RARP, PPPoE, SNMP, CHAP, DHCP, NTP, SMTP client, uPnP, etc.

MECHANICAL

  • Case: Aluminium

  • Operating Temperature: -20℃ ~ +70℃

  • Ingress Protection: IP68, Nitrogen Filled-in

  • Power: IEEE 802.3af PoE, 48VDC (Max 57VDC)

  • Power Consumption: Up to 11W

  • Dimensions / Weight: 166mm (W) × 103.9mm (D) × 52mm (H) / ~1.2kg

Ordering Information

GPAL-0550M3G
3MP Global Shutter 5~50mm Motorised Lens IP LPR Camera
