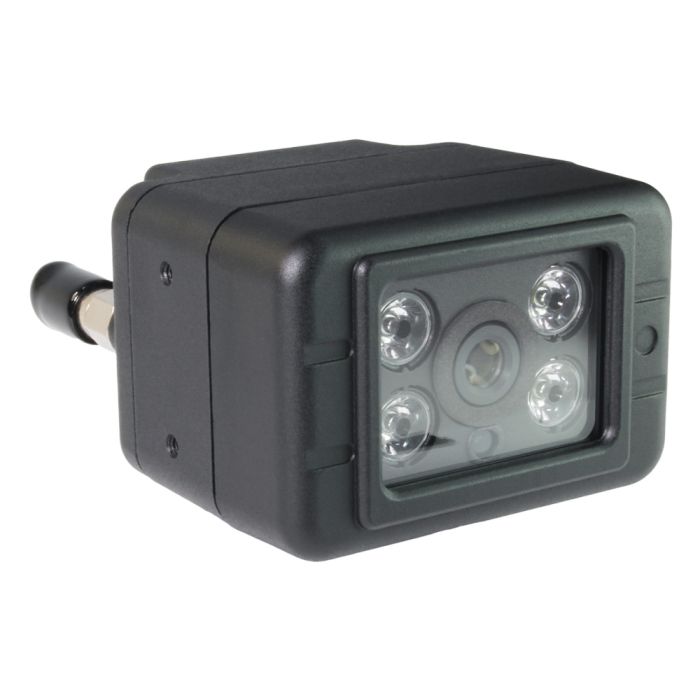

GPCL-675A1GN 5MP Outdoor Mobile POE IP68 Camera
5MP Outdoor Mobile POE IP Camera
Key Features:
1/2.8" 5.14M Sony CMOS sensor
2.8mm Fixed Lens
Quadruple Streaming
Max. 30fps @ 5M (2592x1944)
H.265, H264 or MJPEG
Various Backlight modes of WDR, BLC, HLC
ONVIF Profile S, T
Support RTSP
Support PoE
IP 68 rated
Nitrogen filled
Description
High-quality outdoor IP camera which is equipped with 5.14MP (effective pixel) Progressive Scan CMOS image Sensor. With the highest sensitivity sensor, it is especially superior in low light condition. As it supports simultaneous H.265, H.264 and MJPEG Video Compression, less network bandwidth and storage space required. It also delivers high quality video image at 30fps@5M(2592x1944) in progressive mode. It is the best camera designed for IP68 waterproof and dustproof conditions so that it can be installed outside heavy equipment or commercial vehicles and can operate without any problems even in very poor conditions such as snow, rain, and direct sunlight.
More Information
Brand
GPI Korea
Specifications
CAMERA
Lens
2.8mm (Viewing Angle 140° x 115.4° x 62.9°)
Image Sensor
Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array
Number of Effective Pixels
5.14 M effective pixels
Min. Illumination
Color Mode: 0.1 Lux
Scanning Mode
Progressive Scan
NETWORK
Video Compression
H.265, H.264, Motion JPEG
Video Resolution
30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
Frame rate
Primary up to 30fps @ 2592x1944
Video Streaming
Motion JPEG and H.264/265 Triple Streaming (Simultaneously) Additional JPEG streaming (total quadruple streaming) Independently Controllable frame rate and bandwidth
Time Stamp
Supported (Date/Time Only) in primary stream
Image setting
Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest Color: color, black & white
LAN interface
10/100BaseT Ethernet auto sensing
Built-in Motion detections
Up to 4 zones Motion Sensitivity : 0 ~ 100 : 100 is hypersensitive
Simultaneous clients
Live-cast for up to 16 clients
Web browsing
Video access from Web browser
Developer support
Provides HTTP CGI API, ActiveX control development kit
Supported protocols
HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc
OPERATION ENVIRONMENTS
Operating Temperature
-20℃~ + 70℃
Power
PoE
IP Rating
IP68
Power Consumption
2.1W
