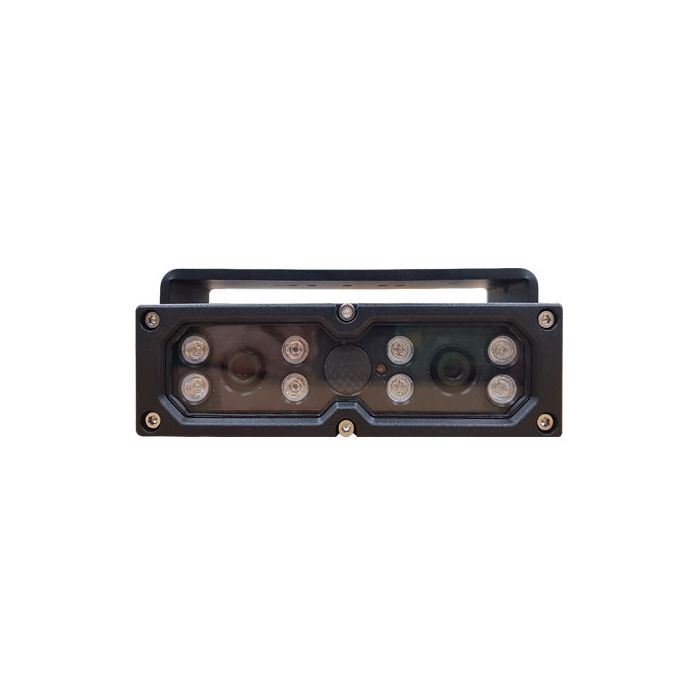

GPCL-E1P 2MP Dual Rolling Shutter Mobile IP68 IP Camera

SKU: GPCL-0806E1P / GPCL-1208E1P / GPCL-1612E1P

Rolling Shutter IP Camera for LPR & Overview / AI / 2MP / IP68 / PoE+

Key Features:

  • 1/2.8” 2.13MP Sony Starvis CMOS Sensor for BW & Color (Overview)
  • 1.2Tops NPU Built-in
  • - Supports vehicle detection, human detection, parking detection
  • - Support AI Open SDK for the simple AI software
  • Individual shutter speed and AEW setting for Day mode and Night mode
  • Up to 60fps@1920x1080
  • Day & Night function (ICR)
  • OnVIF profiles S, RTSP
  • IP68 Rated
  • Nitrogen filled-in for dustproof & moisture-proof
  • PoE + (IEEE802.3at)

Description

The IP Dual Lens LPR camera assists law enforcement, parking, and other authorities to track and capture license plates. Color and B/W sensors and IR illuminators are built into a rugged and compact housing. Rated IP68 and nitrogenfilled to operate and withstand the harshest conditions 8 high-power LEDs detect virtually all kinds of reflective and non-reflective license plates. IP-based using OnVIF for effective interoperability. Power-over-Ethernet (POE+) interface allows a single wire connection for both data Transfer and power transmission.

Download

More Information

Brand GPI Korea
Specifications
Item LPR Camera (B/W) Overview camera (Color)
CAMERA
Image Sensor 1/2.8” 2.13MP Sony Starvis PS CMOS Sensor
Number of Effective Pixels 1920(H) x 1080(V) approx. 2.07 M pixels
NPU 1.2Tops
Streaming Quadruple streaming
Lens / FOV 8mm / 47.0°(D) x 38.0°(H) x 22.0°(V)12mm / 31.0°(D) x 26.0°(H) x 15.0°(V) 16mm / 25.0°(D) x 23.9°(H) x 13.5°(V) 6mm / 60.4°(D) x 52.8°(H) x 30.3°(V)8mm / 47.0°(D) x 38.0°(H) x 22.0°(V)12mm / 31.0°(D) x 26.0°(H) x 15.0°(V)
IR LED 8pcs, 855nm IR LEDs
Compression H.265, H.264, M-JPEG, JPEG
Resolution 30 FPS@1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
Max. Frame Rate 60fps, 50fps (1080P)
Frequency Control 60hz, 50hz
Privacy Masking 8 privacy zone
Motion Detection Up to 4 area
Day & Night True Day & Night (ICR)
White Balance Auto, Preset, Manual
Image Adjustment Sharpness, Gamma, Mirror, Flip, Contrast
Shutter Speed Auto, Fricker, Manual(1/30~1/30000),
Sense-up off, 2x, 4x, 8x, 16x, 32x
Flip Flip (On, Off), Horizontal (On, Off)
NETWORK
LAN Camera 10/100-base-T /  output Gigabit
Protocol HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6),UDP, FTP, Telnet, HTTPS, RARP, SNMP (option), DHCP, NTP, SMTP client, uPnP & etc
Standard ONVIF (Profile S)
Bit rate control CVBR, CBR, VBR
Security IP Filtering, HTTPS, Encrypted & Basic Authentication,Management White List
Multi Browser support
OPERATION ENVIRONMENT
Case Aluminum
Ingress Protection Degree IP 68 rated, Nitrogen filled-in
Operating Humidity 0~80% (non-condensing)
Operating Temperature -20℃~+70℃
Power input PoE+ (IEEE802.3at)
Power Consumption Max 10W,  Average 9.4 W
Dimension/ Weight 185.5mm(W) x 137.6mm(D) x 53mm(H)/ about 1.6Kg

Ordering Information

  • lGPCL-0806E1P     8mm/6mm Lens
  • GPCL-1208E1P     12mm/8mm Lens
  • GPCL-1612E1P      16/12mm Lens
