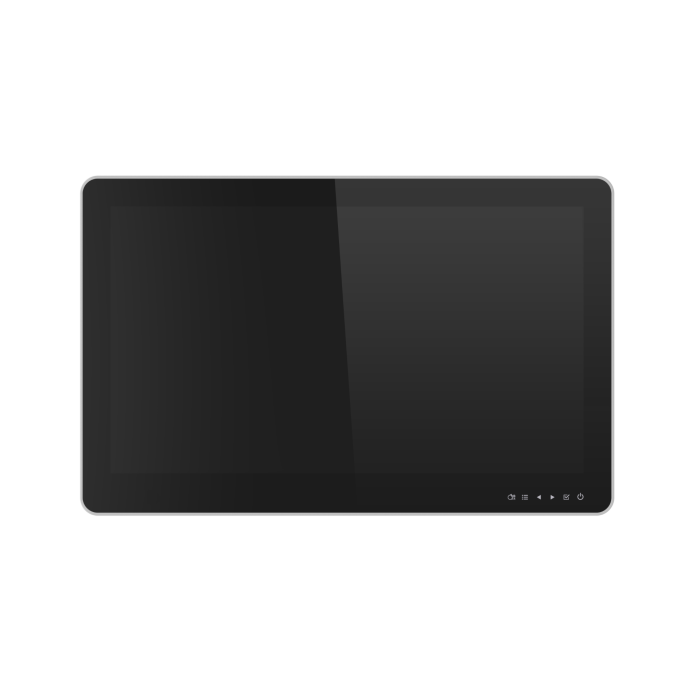

HID-2100 21.5” Medical Touchscreen Monitor
View larger image
HID-2100 21.5” Medical Touchscreen Monitor
Professional-grade display option, designed and tested to the IEC60601-1 standards, and is IP65 compliant
Key Features:
10 points Multi-Touch Frameless Design DisplayPort, HDMI, and VGA inputs Front IP-65 Protection Integrated Speakers Optional privacy screen Mount with Flexibility
Description
The HID-2100 touchscreen monitor delivers a professional-grade display option that’s been designed and tested to the IEC60601-1 standards, and is IP65 compliant, making it ideal for various healthcare settings. With a 75Hz refresh rate, a wide viewing angle, and integrated speakers, the HID-2100 delivers exceptional performance and versatility for all your healthcare display needs.
Key Features:
10 points Multi-Touch
Frameless Design
DisplayPort, HDMI, and VGA inputs
Front IP-65 Protection
Integrated Speakers
Optional privacy screen
Mount with Flexibility
More Information
Brand
Avalue Technology Inc
Specifications
-System Information-
Board HID-2100 AD Board
MCU RTD2525A
Panel
LCD Size 21.5"
Display Type Full HD
Resolution 1920 x 1080
Pixel pitch 0.24795 (H) x 0.24795 (V)
Luminance 250 cd/m²
Contrast ratio 1000
Viewing angle 89(U), 89(D), 89(L), 89(R)
Response time 22ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 86%
Touch Controller USB touch (EETI EXC3188)
I/O
USB Port 2 x USB 2.0
HDMI 1 x HDMI
VGA 1 x VGA
Other 1 x DP 1 x Line in 1 x Line out
Audio
Speaker Output 2 x 2W
Certifications
Certification Information CE, FCC
Power Requirement
DC Input 19-24V
DC Input Connector Lockable DC Jack
Adapter 24V 120W Adapter
Mechanical & Environmental
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (-14°F ~ 140°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 539.6 x 342.6 x 45.2 mm
Weight 5.5 Kgs
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating Front IP65
System Fan Fanless
Construction - Front White Plastic
Construction - Rear White Plastic
Finishing Anti-Microbial
Fanless Yes
Color White
Ordering Information
Ordering Information HID-2100-252-A1R
