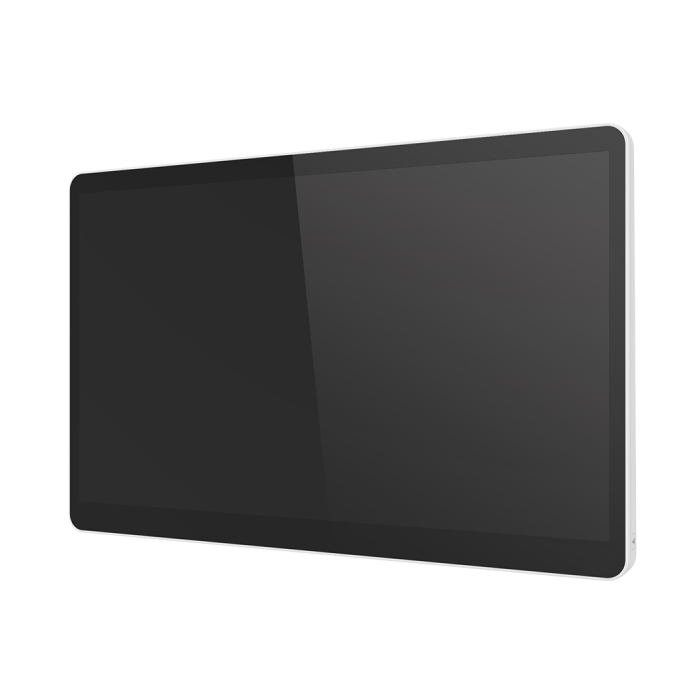

HID-2146 21.5” Intel Core Ultra Medical Panel PC
21.5" Full HD PCAP touch Medical Panel PC with Intel® Core™ Ultra
Key Features:
- 21.5" Full HD PCAP touch
- Intel Arrow Lake U Processor
- 1 COM, 1 LAN, 1 HDMI, 2 x USB 3.2, 4 x USB 2.0, 1 USB Type C
- Optional 5KV isolation, 2 USB 2.0, 1 LAN, 1 COM by IET module
- 1 x 12V/24V DC output
- 1 x M.2 Type B 2280, 2 x M.2 Type M 2280 for storage, 1 x M.2 Type E 2230 for WIFI
- 1 x PCI Express [x4] expansion
- Imprivata RFID Integration
- Optional capture card, AI card, GPU card, Camera, Noise Cancelling Mic, Backup Battery,
- Sound Bar integration
- Front IP65
Description
Product Overview
The Avalue HID-2146 is a 21.5" medical edge panel PC designed for nursing assistance, hands-free control and smart healthcare environments. Powered by Intel Core Ultra 5 and Ultra 7 processors, it combines AI-ready performance, medical-grade design and flexible expansion within a large format touchscreen platform. With support for optional RFID, camera, microphone array and speaker modules, the HID-2146 is suited to patient care, bedside systems, clinical data management and healthcare edge computing applications.
Key Features
Intel Core Ultra Medical Computing
-
Available with Intel Core Ultra 5 225U and Core Ultra 7 255U processors
-
Designed for healthcare edge computing and clinical workloads
-
Supports AI-assisted healthcare applications and intelligent workflows
-
Suitable for patient monitoring and nursing assistance systems
21.5 Inch Full HD Touch Display
-
21.5-inch Full HD display with 1920 × 1080 resolution
-
Projected capacitive multitouch interface for responsive interaction
-
Designed for healthcare visualisation and bedside applications
-
Suitable for clinical information display and user interaction
Healthcare Focused Design
-
Antimicrobial enclosure finish for healthcare environments
-
Front IP65 protection and rear IP54 protection
-
White medical-grade housing suited to clinical deployment
-
Designed for easy cleaning and infection control procedures
Flexible Expansion and Integration
-
PCIe expansion slot for additional functionality
-
Optional isolated LAN, USB and COM expansion modules
-
Optional RFID, barcode scanner and autofocus camera support
-
Suitable for integration into healthcare and nursing workflows
Rich Connectivity
-
Multiple USB ports for peripherals and medical devices
-
USB Type C supporting modern connectivity requirements
-
2.5GbE LAN for high-speed network communication
-
Serial communication support for healthcare equipment integration
Audio and Communication Features
-
Integrated speakers for alerts and communication functions
-
Optional microphone array with noise reduction support
-
Optional high-power speaker module for enhanced audio output
-
Suitable for telehealth and patient interaction systems
Medical Grade Reliability
-
Supports Windows 10, Windows 11 and Linux operating systems
-
Designed to meet medical and healthcare deployment requirements
-
Lockable DC power input for reliable operation
-
Suitable for continuous use in healthcare environments
Applications and Use Cases
The HID-2146 is suitable for:
-
Nursing assistant and bedside care systems
-
Patient monitoring and healthcare visualisation
-
Clinical information management terminals
-
Telemedicine and remote consultation platforms
-
Smart hospital and healthcare edge deployments
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
SKU: HID-2146-B1-22-A1R
21.5" Arrow Lake Medical Multi-Touch Panel PC, Intel Core Ultra 5 225U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter
SKU: HID-2146-B1-25-A1R
21.5" Arrow Lake Medical Multi-Touch Panel PC, Intel Core Ultra 7 255U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter
Power Cords:
E1702031000R EU Power Cord
E1702031833R US Power Cord
E170203183CR JP Power Cord
E170P060380R UK Power Cord
E1702031831R AU Power Cord
E170P060391R CN Power Cord
