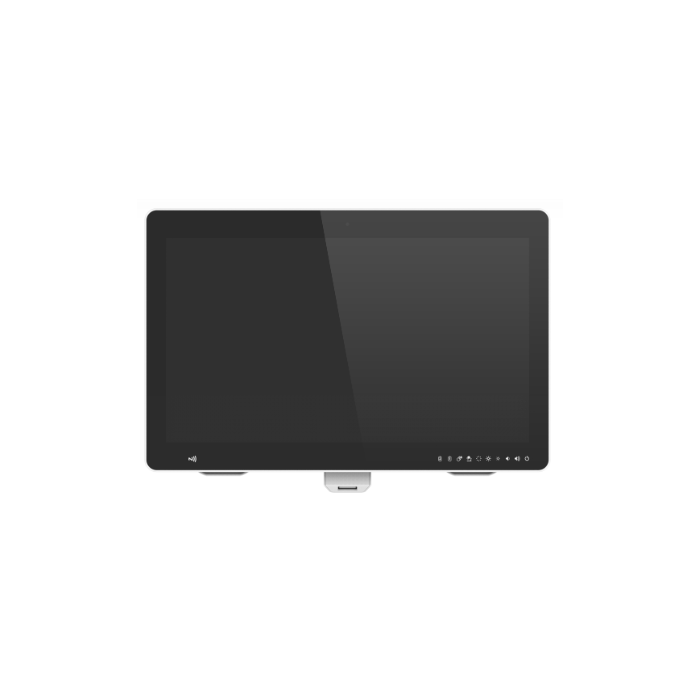

HID-2334 23.8" Medical Cart Panel PC
View larger image
HID-2334 23.8" Medical Cart Panel PC
23.8” Full HD PCAP Multi touch, 7th Generation Intel® Core Kaby Lake i5 Processor, LED reading light bar
Description
23.8” medical AIO PC HID-2334 our first to carry two hot swappable batteries for real mobility. The system takes advantage of Intel® Kaby Lake platform to provide a balance of performance and features. Especially designed for mobile carts, the HID-2334 is capable to help on daily tasks in healthcare institutions for the use of professional healthcare workers. With built in hot swappable batteries and four slots charging bay.
More Information
Brand
Avalue Technology Inc
Specifications
System
Processor 7th Generation Intel® Core Kaby Lake i5-7300U Processor
System Chipset integrated in Processor (SOC)
System Memory 2 x 260pin SODIMM socket up to 32GB Per Slot DDR4 2400 SDRAM
Watchdog Timer H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor Monitoring System Temperature & Voltage
SBC HID-2334 M/B + Charger Board
Battery Optional Smart Battery Pack
Expansion
Expansion 1 x M.2 2230
Storage
Storage 1 x 2.5" Drive Bay
Panel
LCD Size 23.8"
Display Type Full HD
Resolution 1920 x 1080
Pixel pitch 274.5×274.5
Luminance 250 cd/m²
Contrast ratio 3000
Viewing angle 89(U), 89(D), 89(L), 89(R)
Response time 16ms
Backlight LED
Touch Type Projective Capacitive
Touch Controller EETI EXC84H5680
I/O
USB 4 x USB 3.0
SATA 1 x SATA III
HDMI 1 x HDMI
Display Port 1 x DP
Audio
Chipset Realtek ALC892
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® I211AT, 1 x Intel® I219LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Mechanical & Environmental
Power Type DC in +19V~24V
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight 6.9 kg (without batteries and adapter)
Mounting Kit Optional Mounting Kit (VESA 75 x 75, 100 x 100)
Dimension (L x W x H) 539.6 x 342.6 x 45.2 mm
IP Rating Front IP65
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan Fanless
Construction - Front White Plastic
Construction - Rear White Plastic
Finishing Anti-Microbial
Fanless Yes
Color White
Certifications
Certification Information CE :
Software Support
OS Information Win10 64 bit/Linux
Power Requirement
Power Connector Lockable DC Jack, +12V~+24V
Power Mode AT/ATX (ATX is default setting)
Adapter Medical grade
Data Collection
Camera 5.0M CMOS with auto-focus
NFC NFC RFID Module Built In
Wireless Communication
WLAN Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0
