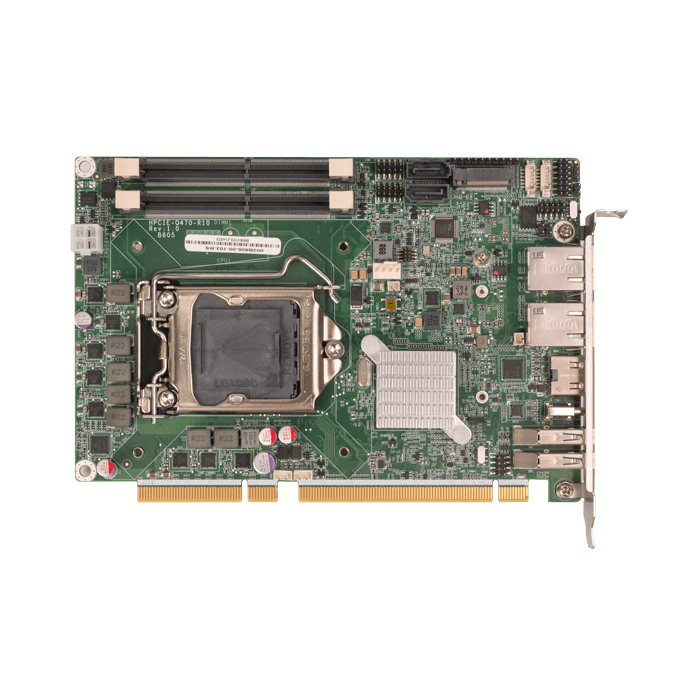

HPCIE-Q470 Half-size PICMG 10th/11th Gen CPU

In stock
SKU:
HPCIE-Q470-R10
Brand: IEI Integration Corp.

Half-size PICMG 1.3 CPU Card LGA1200 10th/11th Gen Intel Core i9/i7/i5/i3/Pentium/Celeron with Intel Q470/Q470E, DDR4 SO-DIMM, HDMI, Dual Intel 2.5GbE, USB 3.2 Gen 2, SATA 6Gb/s, M.2, IAUDIO, and RoHS


Enquire Now
Enquire about this product:

Half-size PICMG 1.3 CPU Card that supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs.

Key Features:

  • LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor

  • Dual-channel DDR4 2933MHz

  • Support Dual Intel 2.5GbE

  • Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage

This product is listed in Digital Signage, Industrial Automation, Gaming, Mining, Medical, Transport, IEI Integration Corp., Embedded Boards

Hardware Spec.

Form Factor
Form Factor Half Size Single Board Computer
System
CPU LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3,Pentium® and Celeron® processor(Support up to 65w)
Chipset Intel® Q470/Q470E
Memory 2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 169 mm x 126 mm
Net Weight 420g
Storage
Storage 2 x SATA : 6Gb/s (support RAID 0/1)
  1 x M.2(NGFF) : M Key (2242/2280) with PCIe Gen3 x4 ,support NVME storage
I/O Interface
Display Output 1 x HDMI : up to 4096 x 2160@30Hz
Ethernet 2 x LAN :
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 2 x Internal RS-232/422/485 : 2x5 pin, P=2.00 ,RS-485 support AFC
  2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)
  2 x Internal USB 2.0 : 2x4 pin, P=2.00
  DIO : 12-bit digital I/O (2x7 pin)
  1 x External USB 3.2 Gen2x1 : 10Gb/s (Type-C)
Expansion 1 x PCIe x16 :
signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
  1 x PCIe x4 :
signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
  2 x M.2(NGFF) :
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4
Power
Power Supply 5V/12V, ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

HPCIE-Q470-R10 Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q470E, DDR4 SO-DIMM, HDMI, USB-C, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHs

Package Contents

Package Content
  • 1 x HPCIE-Q470 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
