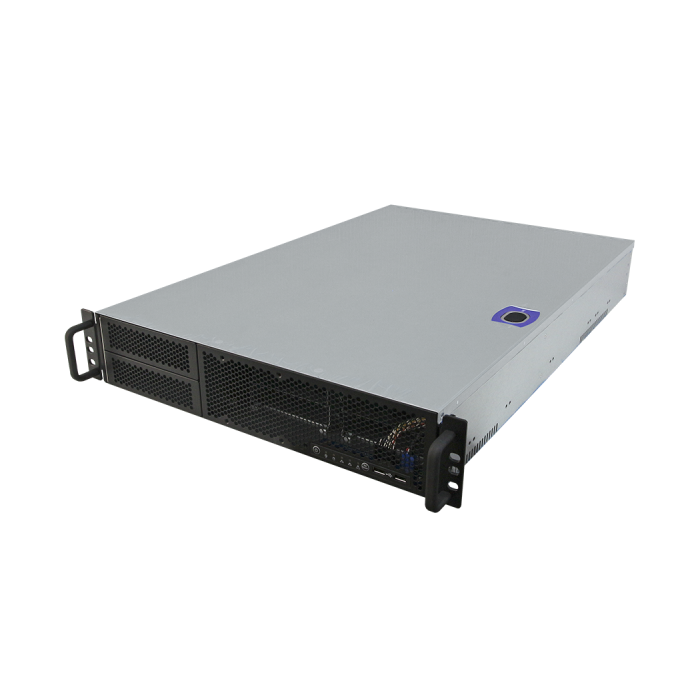

HPS-ERSU2A 2U Rackmount Tower Workstation

Product Overview

The Avalue HPS-ERSU2A is a 19-inch 2U rackmount workstation designed for high-performance industrial servers, edge processing and data-intensive applications. Powered by 4th or 5th Generation Intel Xeon Scalable processors with the Intel C741 chipset, it supports up to 1.5 TB of DDR5 memory, multiple PCIe Gen5 expansion cards and a mix of high-speed 10GbE, 2.5GbE and 1GbE networking. With IPMI 2.0 remote management, TPM 2.0, multiple internal storage bays and a 500 W power supply, the HPS-ERSU2A is suited to industrial servers, AI, vision and high-throughput edge workloads.

Intel Xeon Scalable Platform

• Supports 4th and 5th Generation Intel Xeon Scalable processors

• Intel LGA4677 socket

• Maximum processor TDP up to 270 W

• Intel C741 chipset

• Designed for demanding industrial and server workloads

High-Capacity DDR5 Memory

• 6 x DDR5 RDIMM slots

• Supports DDR5 memory speeds up to 5600 MHz

• Total memory capacity up to 1.5 TB

• Suitable for large datasets, virtualisation and memory-intensive applications

PCIe Gen5 Expansion

• 4 x PCIe Gen5 x16 slots

• 3 x PCIe Gen5 x4 slots

• Supports high-bandwidth GPU, accelerator, storage and network cards

• Suitable for flexible system expansion and specialist add-on hardware

High Speed Networking

• 1 x Intel I210AT 1GbE controller

• 1 x Intel I226-LM 2.5GbE controller

• 1 x Intel X550AT2 10GbE controller

• 2 x 10GbE Ethernet ports

• 5 x RJ45 ports in total, including dedicated IPMI management

Storage Expansion

• 4 x internal 3.5-inch drive bays

• 2 x internal 3.5-inch or 2.5-inch drive bays

• 1 x M.2 M-Key slot for PCIe 3.0 x4 NVMe SSD

• Supports 2242, 2260, 2280 and 22110 M.2 form factors

• Suitable for a combination of high capacity and high-speed local storage

IPMI and System Management

• IPMI 2.0 support

• ASPEED AST2600 BMC controller onboard

• Dedicated RJ45 management port for remote administration

• CPU temperature, fan speed and voltage monitoring

• Fan speed control and system watchdog timer

Front and Rear I/O

• 2 x front USB 2.0 Type-A ports

• 4 x rear USB 3.2 Gen1 ports

• 2 x rear USB 2.0 Type-A ports

• 1 x RS232 serial port

• 1 x VGA output

• Front power, reset and system status controls

Security and Reliability

• TPM 2.0 onboard

• AMI UEFI BIOS

• Hardware watchdog timer

• System error, power, disk and network activity indicators

• Designed for continuous server and industrial operation

Power and Environmental Support

• 1 x 500 W single power supply

• Operating temperature from 0°C to 40°C

• Storage temperature from -40°C to 70°C

• Up to 95% relative humidity, non-condensing

• 12.7 kg system weight

Software Support

• Windows 10 IoT Enterprise LTSC 2021

• Windows Server IoT 2019

• Windows Server IoT 2022

• Ubuntu 21.10, 22.04 LTS or later

• Red Hat Enterprise Linux 8.2 or later

Applications and Use Cases

The HPS-ERSU2A is suitable for:

• Industrial server applications

• Edge data processing

• AI and machine vision systems

• High-speed network appliances

• Virtualisation and local server infrastructure

• GPU and accelerator-based workloads

• High-capacity storage and data acquisition systems



Dimensions & Drawings
