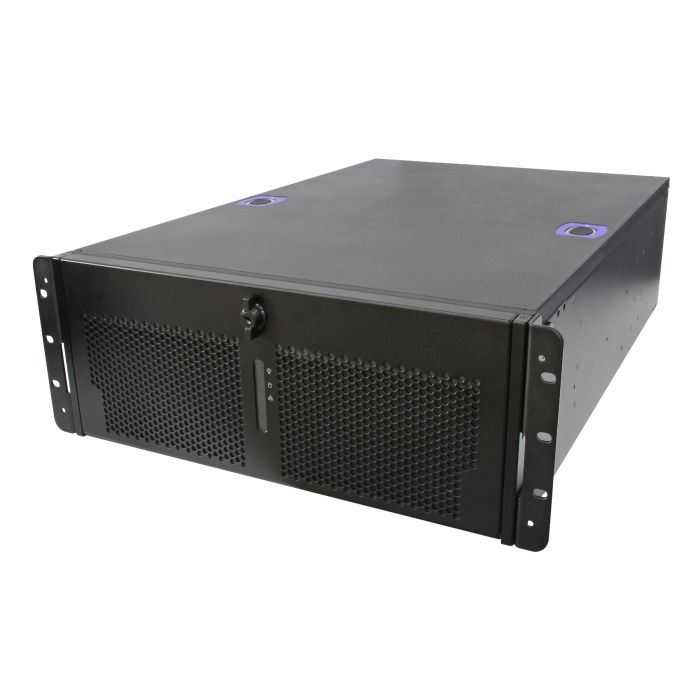

HPS-GNRD4A 4U Rackmount & Tower Workstation

Product Overview

The Avalue HPS-GNRD4A is a high-performance 4U rackmount workstation designed for demanding AI, industrial server, edge processing and data-intensive applications. Powered by dual Intel Xeon 6 processors, it supports up to 4 TB of DDR5 memory, six PCIe Gen5 expansion slots and multiple high-speed storage options. With dual 10GbE networking, IPMI 2.0 remote management, TPM 2.0 security and high-capacity power supply options, the HPS-GNRD4A is suited to GPU acceleration, AI inference, simulation, analytics and other high-performance workloads.

Key Features

Dual Intel Xeon 6 Platform

• Dual Intel LGA4710 processor sockets

• Supports Intel Xeon 6 6500P and 6700P series processors

• Maximum processor TDP up to 350 W per CPU

• Designed for high-performance parallel processing workloads

• Built around the Avalue HPM-GNRDE server board

High Capacity DDR5 Memory

• 16 x DDR5 memory slots

• Supports DDR5 6400 MHz RDIMM

• Supports DDR5 8000 MHz MRDIMM

• Total memory capacity up to 4 TB

• Suitable for memory-intensive AI, analytics and virtualisation workloads

PCIe Gen5 Expansion

• 5 x PCIe Gen5 x16 slots

• 1 x PCIe Gen5 x8 slot

• Expansion lanes distributed across both processors

• Supports high-bandwidth GPU, accelerator, FPGA, networking and storage cards

• Suitable for multi-card workstation and server configurations

High-Speed Storage Support

• 3 x front accessible 2.5 inch storage bays

• 2 x M.2 M-Key slots for PCIe 5.0 x4 NVMe SSDs

• Supports 2242, 2260, 2280 and 22110 M.2 form factors depending on slot

• Designed for fast local storage and high-throughput data applications

10GbE Networking

• 2 x 10GbE Ethernet ports

• 2 x 1GbE LAN connections

• Dedicated IPMI management port

• Intel E610-XAT2 10GbE controller

• Intel I210AT Gigabit Ethernet controllers

IPMI and System Management

• IPMI 2.0 remote management support

• ASPEED AST2600 BMC controller onboard

• Dedicated management LAN for remote administration

• CPU temperature, fan speed and voltage monitoring

• Fan speed control and case open detection

• Hardware watchdog timer support

Front and Rear I/O

• 2 x front USB 3.2 Gen1 ports

• 6 x rear USB 3.2 Gen2 ports

• 1 x RS232 serial port

• 1 x VGA output supporting up to 1920 × 1200 at 60 Hz

• Front power and reset buttons

• Power, disk and network activity indicators

Security and Reliability

• TPM 2.0 onboard

• AMI UEFI BIOS

• Hardware watchdog timer from 0 to 6553 seconds

• System hardware monitoring

• Designed for continuous workstation and industrial server operation

Power Supply Options

• 1300 W PS2 ATX power supply as standard

• Optional 1600 W CRPS power supply

• Supports high-power CPU and expansion card configurations

• 1300 W configuration supports operation from 0°C to 35°C

• 1600 W CRPS configuration supports operation from 0°C to 40°C

Software Support

• Windows 11 SAC and LTSC

• Windows Server 2025

• Ubuntu 24.04 LTS or later

• Red Hat Enterprise Linux

Applications and Use Cases

The HPS-GNRD4A is suitable for:

• AI inference and model processing

• GPU-accelerated industrial applications

• High-performance edge servers

• Machine vision and analytics

• Simulation and engineering workloads

• Virtualisation and private cloud infrastructure

• High-speed data acquisition and processing

• Multi-accelerator workstation deployments
