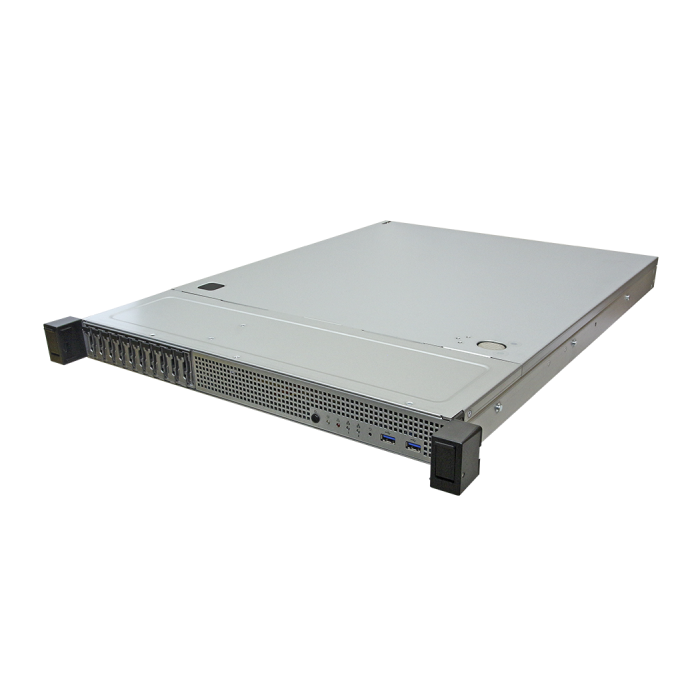

HPS-GNRU1A 1U Compact Rackmount Server

Product Overview

The Avalue HPS-GNRU1A is a 1U compact rackmount server designed for edge HPC, AI inference, industrial server applications and high density data processing. Powered by a single Intel Xeon 6 processor, it supports high bandwidth PCIe Gen5 expansion, up to 2 TB DDR5 memory and front accessible NVMe storage options. With IPMI 2.0 remote management, 10GbE networking, TPM 2.0 security and an 850 W 1U power supply, the HPS-GNRU1A is suited to deployments that require server class performance in a space efficient rackmount platform.

Key Features

Intel Xeon 6 Platform

• Supports single Intel Xeon 6 6500P, 6700P and 6700E series processors

• Intel LGA4710 socket

• Supports processor TDP up to 350 W

• Designed for edge HPC, AI inference and industrial server workloads

• Built around the Avalue HPM-GNRUP server board

High Capacity DDR5 Memory

• 8 x DDR5 memory slots

• Supports DDR5 6400 MHz RDIMM

• Supports DDR5 8000 MHz MRDIMM

• Total memory capacity up to 2 TB

• Suitable for memory-intensive workloads and large datasets

High-density NVMe Storage

• Model options with 10 x front accessible E1.S NVMe SSD bays

• Model options with 4 x front accessible 2.5 inch U.2 NVMe SSD bays

• Selected configurations include 2 x M.2 M-Key slots for PCIe 5.0 x4 NVMe SSDs

• Designed for high-speed local storage and data-intensive edge applications

PCIe Gen5 Expansion

• 2 x PCIe Gen5 x16 full height, full length slots via riser card

• 1 x PCIe Gen5 x8 half-height, half-length slot via riser card

• Supports high-bandwidth accelerator, networking and storage expansion

• Suitable for GPU, FPGA and specialist add-on card integration

Server Management and Security

• IPMI 2.0 remote management support

• AST2600 BMC controller onboard

• Dedicated management LAN port for IPMI access

• TPM 2.0 onboard security

• AMI UEFI BIOS and hardware watchdog timer support

Networking and Rear I/O

• 2 x 10GbE RJ45 ports

• 1 x 1GbE RJ45 port shared with IPMI access

• 1 x dedicated management RJ45 port

• 2 x rear USB 3.2 Gen1 ports

• 1 x RS232 port

• 1 x Mini DisplayPort output

Front Access and System Monitoring

• 2 x front USB 3.2 Gen1 ports

• Front power and reset buttons

• Power status, system status and network activity indicators

• CPU temperature, fan speed, voltage and case open monitoring

• Fan speed control support

Power and Environmental Support

• 1 x 850 W 1U single power supply as standard

• Optional slim-type CRPS power supply configuration

• 100 V to 240 VAC input support

• Operating temperature from 0°C to 40°C with air shroud

• 35°C at 95% relative humidity, non-condensing

Software Support

• Windows 11 LTSC 24H2

• Windows Server 2025 LTSC

• Ubuntu 24.04

• Red Hat Enterprise Linux 8.0 or above
