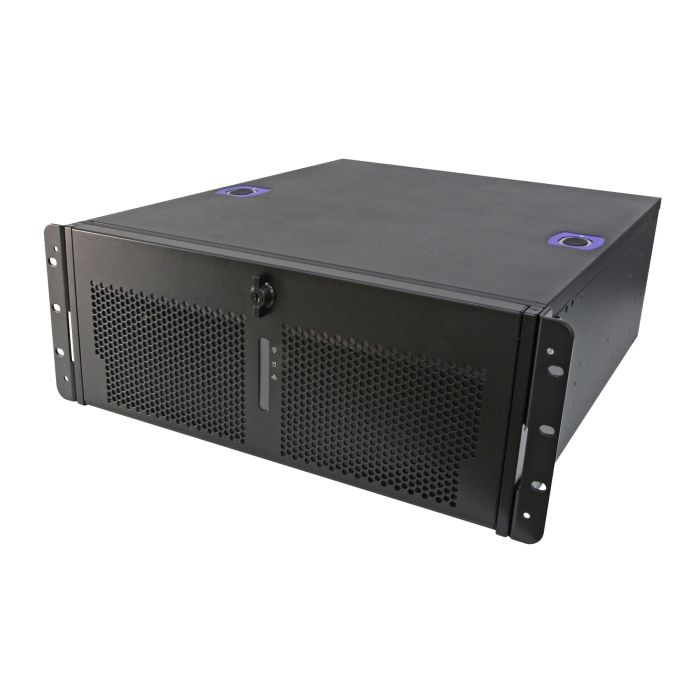

HPS-GNRU4A 4U Rackmount & Tower Workstation

Product Overview

The Avalue HPS-GNRU4A is a 4U rackmount workstation designed for AI, high-performance processing, industrial server and data-intensive applications. Powered by a single Intel Xeon 6 processor, it supports up to 2 TB of DDR5 memory, four PCIe Gen5 x16 expansion slots and multiple high-speed storage options. With dual 10GbE networking, IPMI 2.0 remote management, TPM 2.0 security and a 1300 W power supply, the HPS-GNRU4A is suited to GPU acceleration, AI training and inference, machine vision, analytics and other demanding workstation workloads.

Key Features

Intel Xeon 6 Platform

• Single Intel LGA4710 processor socket

• Supports Intel Xeon 6 6500P, 6700P and 6700E series processors

• Maximum processor TDP up to 350 W

• Designed for high-performance AI and server workloads

• Built around the Avalue HPM-GNRUA server board

High Capacity DDR5 Memory

• 8 x DDR5 memory slots

• Supports DDR5 6400 MHz RDIMM

• Supports DDR5 8000 MHz MRDIMM

• Total memory capacity up to 2 TB

• Suitable for memory-intensive AI, analytics and virtualisation applications

PCIe Gen5 Expansion

• 4 x PCIe Gen5 x16 slots

• Supports high-bandwidth GPU and accelerator cards

• Suitable for up to four dual-width GPU configurations

• Supports networking, storage, FPGA and specialist accelerator cards

• Designed for scalable workstation and AI deployments

High Speed Storage Support

• 3 x front accessible 2.5 inch storage bays

• 2 x M.2 M-Key slots

• Supports PCIe 5.0 x4 NVMe SSDs

• Supports 2260, 2280 and 22110 M.2 form factors

• Suitable for NVMe, SSD and RAID accelerator configurations

10GbE Networking

• 2 x 10GbE Ethernet ports

• 1 x 1GbE LAN port shared with IPMI access

• 1 x dedicated IPMI management port

• Intel E610-XAT2 10GbE controller

• Intel I210AT Gigabit Ethernet controller

IPMI and System Management

• IPMI 2.0 remote management support

• ASPEED AST2600 BMC controller onboard

• Dedicated management LAN for out-of-band access

• CPU temperature, fan speed and voltage monitoring

• Fan speed control and case open detection

• Hardware watchdog timer support

Front and Rear I/O

• 2 x front USB 3.2 Gen1 ports

• 2 x rear USB 3.2 Gen1 ports

• 1 x RS232 serial port

• 1 x VGA output

• 4 x RJ45 network connections in total

• Front power, reset and system status indicators

Security and Reliability

• TPM 2.0 onboard

• AMI UEFI BIOS

• Hardware watchdog timer from 0 to 6553 seconds

• System hardware monitoring

• Designed for prolonged high-load workstation operation

Power and Environmental Support

• 1 x 1300 W PS2 ATX power supply

• Operating temperature from 0°C to 35°C

• Storage temperature down to -40°C

• Up to 95% relative humidity, non-condensing

• 19.5 kg system weight

Software Support

• Windows 11 SAC and LTSC

• Windows Server 2025

• Ubuntu 24.04 LTS or later

• Red Hat Enterprise Linux

Applications and Use Cases

The HPS-GNRU4A is suitable for:

• AI training and inference

• Generative AI and large language model workloads

• GPU-accelerated industrial applications

• Machine vision and image analysis

• Smart manufacturing systems

• Medical imaging and healthcare analytics

• High-performance edge servers

• Data-intensive industrial workloads



Dimensions & Drawings
