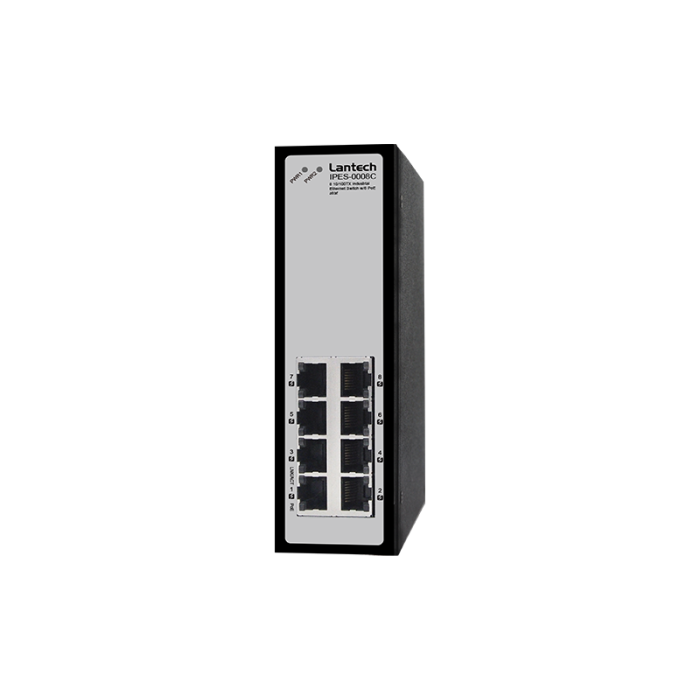

I(P)ES-0008C Industrial Unmanaged Ethernet Switch

The Lantech I(P)ES-0008C is a high-performance all 8 10/100TX industrial Ethernet switch (PoE model: w/8 PoE 802.3at/af ports). It is a compact Ethernet switch featuring a PoE budget of up to 240W (PoE model) and dual power input options ranging from 9-36V or 12-56VDC. The dual input design is capable of withstanding EMI/RFI interference in the onboard or industrial harden network. The redundant power input design integrates inrush current protection also protects against polarity reversal. Additionally, the galvanic isolation feature shields the system from power transients often present in onboard and outdoor networks. It also meets the requirements of ISO 16750-2 P5A, reducing the impact of high-frequency pulse voltage that could be incurred by motor applications. Additionally, the -E model can be used in extreme environments with a wide operating temperature range. The Lantech I(P)ES-0008C is designed for Ethernet switch systems in rail, metro, vehicle, or hardened industrial applications.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

The unit has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 9~36VDC (24V PoE), 45~56VDC (48V PoE), 9.5~56VDC (12V PoE), 9.5~60VDC (12V non-PoE) or 9~36VDC (24V non-PoE). Other features include:

• Galvanic isolation between power input and Ethernet power system
• E-marking certificate for vehicle application (24VDC model)
• Wide temperature range of -40°C~75°C / -40°F~167°F (-E model)
• EN62368 safety compliance
• Compliance with stability testing for IEC 60068-2-27 & IEC 60068-2-31 (Shock) as well as IEC 60068-2-64 & IEC 60068-2-80 (Vibration)

PoE Functionality

This switch supports a PoE budget of up to 240W at 48V input and 80W at 24V input, and includes the following PoE aspects:

• 10/100/1000T: 8 ports RJ-45 with Auto MDI/MDI-X function
• Power & P-Fail connector: 1 x 6-pole terminal block
• Power-saving PoE configuration when ignition is enabled
• Up to 30W per port
• Compliant with 802.3 af/at standard

Other Notable Features

• IES-0008C ignition model with 60min count-down to standby mode (24V-IGN model)
• Relay alarm output for power fail and alarm
• Back-plane (Switching Fabric): 1.6Gbps
• E24 marking certificate for vehicle application (24VDC model)
• IP30 metal housing with DIN rail and Wall-mount** design
