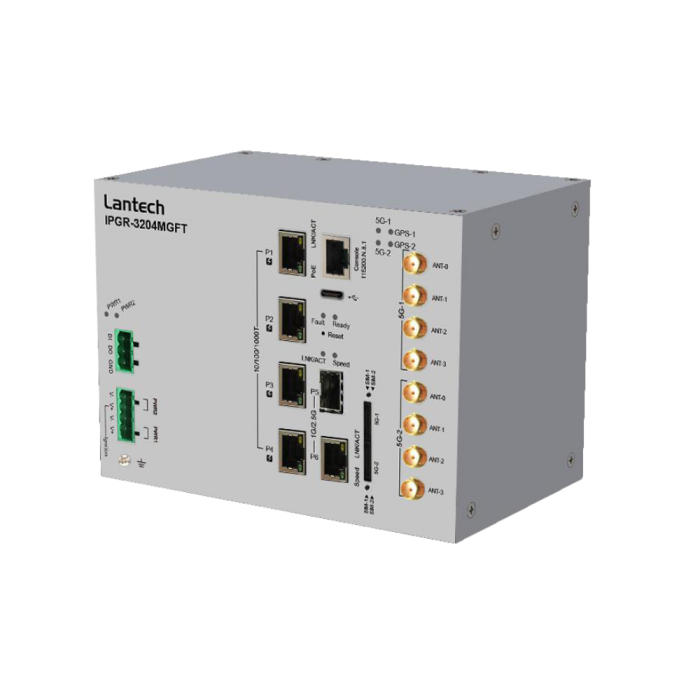

I(P)GR-3204MGFT 5G SA Managed Switch Router
4 GE(PoE) + 1 2.5GE + 1 2.5GF 5G SA Managed Switch Router, IEC62443 Cybersecurity; 24VI input
Key Features:
- 5G SA/NSA managed switch router with global 5G, 4G and 3G band support
- 4 x Gigabit Ethernet ports with optional PoE 802.3af/at
- 1 x 2.5G RJ45 port and 1 x 2.5G SFP fibre port
- Up to 100W PoE budget with PD detection, auto reboot and scheduling
- Supports NAT, VPN, firewall, VRRP, RIPv2 and OSPF routing
- WAN load balancing with fixed, failover, priority, weighted round-robin and custom route modes
- Integrated GNSS with GPS, GLONASS, BeiDou and Galileo
- IEC 62443-4-2 cybersecurity option for secure industrial networks
- Dual 12V to 56VDC power input with galvanic isolation and protection
- Wide operating temperature from -40°C to 70°C
- DIN rail or wall mount installation in IP41 aluminium housing
Description
Product Overview
The Lantech I(P)GR-3204MGFT is a 5G SA managed switch router designed for onboard, industrial and transport network applications. It combines up to two 5G modems, four Gigabit Ethernet PoE ports, one 2.5GbE copper port and one 2.5G SFP fibre port in a compact managed router switch platform. With support for 5G, 4G and 3G connectivity, multi-constellation GNSS, NAT, VPN, load balancing and IEC 62443 cybersecurity options, it provides reliable onboard and ground-to-onboard communication for demanding IoT and mobile broadband applications.
Key Features
5G and Multi-WAN Connectivity
-
Supports up to two 5G modems for flexible mobile network deployment
-
5G, 4G and 3G multimode connectivity with NSA and SA support
-
Five WAN schemes, including fixed, failover, priority, weighted round robin and custom route
-
Multi-constellation GNSS support, including GPS, GLONASS, BeiDou and Galileo
Managed Ethernet Switching
-
Four 10/100/1000T Ethernet ports
-
One 2.5G/1G/100M RJ45 copper port
-
One 2.5G/1G SFP fibre port with DDM support
-
Layer 2 management features including VLAN, DHCP Snooping, IGMPv3, MLD Snooping, MSTP and G.8032 ring protection
PoE Power Management
-
PoE budget up to 100 W across four ports on PoE models
-
Supports IEEE 802.3af/at PoE devices
-
Fast PoE and Perpetual PoE support for critical connected equipment
-
Auto PD detection, auto PD reboot and PoE scheduling
-
Per port PoE enable and disable control with voltage, current, power and temperature monitoring
Routing, VPN and Security
-
NAT support on each port for flexible IP remapping
-
Layer 3 routing, including inter routing, DHCP, static routing, RIPv2 and OSPF
-
VRRP support for automatic failover to a backup router
-
VPN support, including OpenVPN, L2TP over IPsec, IPsec, L2 over GRE and IPGRE
-
Firewall functions, including NAT, port forwarding, DMZ and WAN access filtering
Cybersecurity and Network Protection
-
Optional IEC 62443-4-2 cybersecurity model
-
DDoS attack mitigation and Layer 2 threat protection
-
IEEE 802.1X, RADIUS and TACACS+ authentication
-
Supports secure access through HTTPS, SSH and SNMPv3 authentication and encryption
Management and Diagnostics
-
Web GUI and full CLI interface for configuration
-
Open RESTful API for integration with network management systems
-
Auto topology drawing and editable configuration text files
-
Built-in diagnostic tools, including trace route and DNS lookup
-
Snapshot function for collecting port statistics, system data, configuration and event logs
Rugged Industrial Design
-
Dual DC input from 12 V to 56 V with galvanic isolation
-
Protection against transients, inrush current and reverse polarity
-
IP41 aluminium enclosure
-
Operating temperature from -40°C to 70°C
-
DIN rail and wall mount installation support
Applications and Use Cases
The I(P)GR-3204MGFT is suitable for:
-
Onboard vehicle and transport networks
-
5G router and gateway deployments
-
Remote IoT and mobile broadband applications
-
Industrial Ethernet switching and routing
-
IP camera and PoE device networks
-
Onboard to ground communication systems
Dimensions/Drawings
Download
More Information
| Brand | Lantech | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
|
Model |
Part Number |
Description |
|---|---|---|
|
IPGR-3204MGFT-4-1L-WW-41-24VI-E |
8600-02401 |
Managed Router Switch with 1 x 5G, 1 x 2.5G RJ45 Ethernet, 1 x 2.5G SFP and 4 x 10/100/1000T RJ45 Ethernet ports with PoE 802.3af/at, PoE and Ethernet galvanic isolation, global band support, dual 12V to 56VDC input, -40°C to 65°C operating temperature and IP41 housing. |
|
IPGR-3204MGFT-4-2L-WW-41-24VI-E |
8600-02402 |
Managed Router Switch with 2 x 5G, 2 x 2.5G RJ45 Ethernet, 1 x 2.5G SFP and 4 x 10/100/1000T RJ45 Ethernet ports with PoE 802.3af/at, PoE and Ethernet galvanic isolation, global band support, dual 12V to 56VDC input, -40°C to 65°C operating temperature and IP41 housing. |
|
IGR-3204MGFT-1L-WW-41-24VI-E |
8600-02403 |
Managed Router Switch with 1 x 5G, 1 x 2.5G RJ45 Ethernet, 1 x 2.5G SFP and 4 x 10/100/1000T RJ45 Ethernet ports, Ethernet galvanic isolation, global band support, dual 12V to 56VDC input, -40°C to 65°C operating temperature and IP41 housing. |
|
IGR-3204MGFT-2L-WW-41-24VI-E |
8600-02404 |
Managed Router Switch with 2 x 5G, 1 x 2.5G RJ45 Ethernet, 1 x 2.5G SFP and 4 x 10/100/1000T RJ45 Ethernet ports, Ethernet galvanic isolation, global band support, dual 12V to 56VDC input, -40°C to 65°C operating temperature and IP41 housing. |
