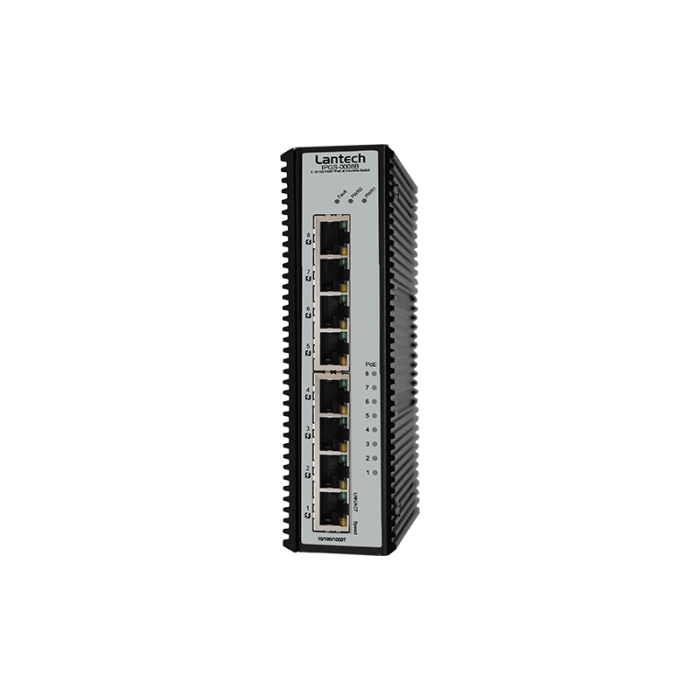

I(P)GS-0008B Industrial Ethernet Unmanaged Switch

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 16Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green), Speed (Amber);
PoE: Active (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Non-PoE model:
9~60VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);

PoE model:
9~56VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);
44~56VDC (48V model)

PoE Budget (PoE model)

240W for 44~56V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
80W at 12V input; 120W at 24V input
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

-8 model:
RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

-6 model:
RJ-45 port # 1~#6 support IEEE 802.3at/af End-point. Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

5W

Galvanic Isolation

Between power input and case ground
Between Ethernet port and case ground
Between power input and Ethernet port

Case Dimension

PoE model, Metal case. IP-30
43 (W) x 105 (D) x 152 (H) mm

Non-PoE model, Metal case. IP-30
35 (W) x 105 (D) x 152 (H) mm

Weight

900g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

FCC Class A, CE EN61000-6-2,
CE EN55032 Class A, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8

Safety

EN62368 (LVD)

Stability Testing

IEC 60068-2-27 (Shock),
IEC 60068-2-31 (Shock),
IEC 60068-2-64 (Vibration),
IEC 60068-2-80 (Vibration)

Vehicle Certificate

E13 marking (-12V;-24V model)

MTBF

NA

Warranty

5 years
