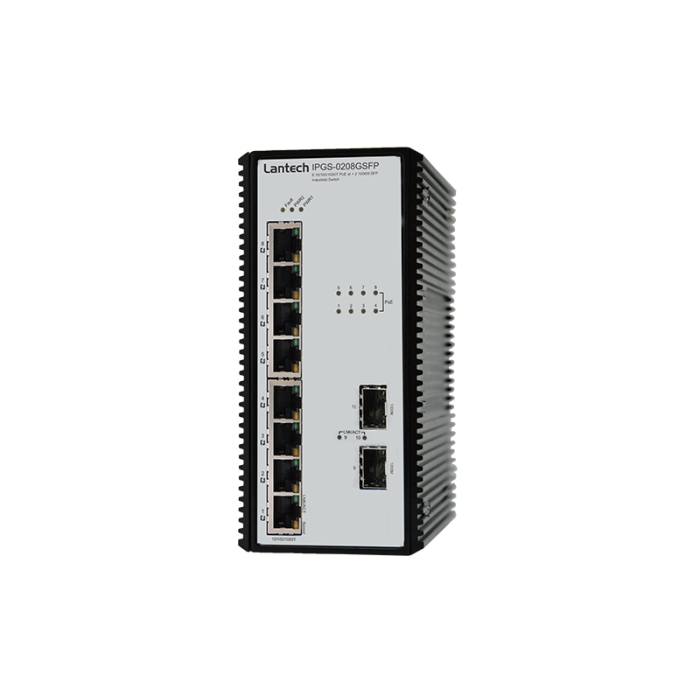

I(P)GS-0208GSFP SFP Industrial Unmanaged Switch

SKU: I(P)GS-0208GSFP

8 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch; 12V/24V/48V input models

Key Features:

  • Support IEEE802.3at/af up to 30W per port
  • Max PoE budget 240W at 48V, 120W at 24V, 80W at 12V input
  • Dual 48V or 12V input
  • Relay alarm output for power fail and alarm
  • IP30 metal housing with DIN rail and Wall-mount** design
  • Provides EFT and ESD protection
Datasheet

Description

The Lantech I(P)GS-0208GSFP is a high performance all Gigabit switch with 8 10/100/1000T + 2 1000M SFP (w/8 PoE 802.3af/at ports). Equipped with DC 12~48V redundant input power, the Lantech IPGS-0208GSFP-12V is able to boost input voltage from 12V to 48V then feed each PoE port up to 15.4Watts/30Watts with total PoE power budget 80W at 12V, 120W at 24V input or 240W at 48V input. TThe E-marking certificate makes it the most suitable PoE switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 12V but has demand of IP surveillance or VoIP applications. The -E model can be used in extreme environments with an extended operating temperature range.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

The unit provides EFT and ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 9~36VDC (24V PoE), 45~56VDC (48V PoE), 9.5~56VDC (12V PoE), 9.5~60VDC (12V non-PoE) or 9~36VDC (24V non-PoE). Other features include:

  • ±2000V EFT and ±6000V ESD protection
  • E-marking certificate for vehicle application (24VDC model)
  • Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
  • EN62368 safety compliance
  • Compliance with stability testing for IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock) and IEC60068-2-6 (Vibration)

PoE Functionality

This switch supports a PoE budget of up to 240W at 48V input, 120W at 24V input and 80W at 12V input and includes the following PoE aspects:

  • 10/100/1000T: 8 ports RJ-45 with Auto MDI/MDI-X function
  • SFP port: 2 x 1000M
  • Power & P-Fail connector: 1 x 6-pole terminal block
  • Up to 30W per port
  • Compliant with 802.3 af/at standard
  • 10KB jumbo frame supported on all ports

Other Notable Features

  • Relay alarm output for power fail and alarm
  • Back-plane (Switching Fabric): 20Gbps
  • Optional E-marking* certificate for vehicle application (24VDC model)
  • IP30 metal housing with DIN rail and Wall-mount** design

Download

Datasheet
User Manual

More Information

Brand Lantech
Specifications

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 20Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port

Mac Address

16K MAC address table

Jumbo frame

10 KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
SFP port: 2 x 1000M
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Optical Cable

1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green)
PoE: Link/Act (Green); Mini-GBIC: Link/Activity (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

PoE model:
9~36VDC (24V model);
45~56VDC(48V model);
9.5V~56VDC(12V model)

Non-PoE model:
9.5~60VDC (12V model);
9~36VDC (24V model);

PoE Budget (PoE model)

80W at 12V input; 120W at 24V input(12V model)
100W for 9~36VDC at 24V input (24V model)
240W for 45~56VDC at 48V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W at 54~56VDC/15W at 48V~56VDC.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

Power Consumption

10W

Case Dimension

Metal case. IP-30,
74 (W) x 114 (D) x 152 (H) mm

Weight

900g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

EN 55011:2016
FCC Part 15 Class A
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024: CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Safety

EN62368 (LVD)

Stability Testing

IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)

Vehicle Certificate

E13 marking (-24V model)

MTBF

12V: 813,050 (Hrs)
48V: 850,918 (Hrs)

Warranty

5 years

Ordering Information

ORDERING INFORMATION

P/N

Model name

Description
8350-9941 IPGS-0208GSFP-48V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 45~56VDC input; -20°C to 60°C
8350-9951 IPGS-0208GSFP-48V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 45~56VDC input; -40°C to 75°C
8350-9961 IPGS-0208GSFP-12V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -20°C to 60°C
8350-9971 IPGS-0208GSFP-12V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -40°C to 75°C
8350-9962
 IPGS-0208GSFP-24V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9~36VDC input; -20°C to 60°C
8350-9972
 IPGS-0208GSFP-24V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9~36VDC input; -40°C to 75°C
8350-9942 IGS-0208GSFP-12V 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9.5~60VDC input; -20°C to 60°C
8350-9943 IGS-0208GSFP-12V-E 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9.5~60VDC input; -40°C to 75°C
8350-9944
 IGS-0208GSFP-24V 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9~36VDC input; -20°C to 60°C
8350-9945
 IGS-0208GSFP-24V-E 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9~36VDC input; -40°C to 75°C

OPTIONAL ACCESSORIES - DIN Rail Power

Model name

Description
NDR-480 Series 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name Description Model name Description
8330-162-V1 MINI GBIC 1000SX (LC/0.5km) Transceiver 8330-189-V1 LTSFP-1000BX-10KM Transceiver (WDM 1550)
8330-163-V1 MINI GBIC 1000SX2 (LC/2km) Transceiver 8330-186-V1 LTSFP-1000BX-20KM Transceiver (WDM 1310)
8330-165-V1 MINI GBIC 1000LX (LC/10km) Transceiver 8330-187-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550)
8340-0591-V1 MINI GBIC 1000LHX (LC/40km) Transceiver 8330-180-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-166-V1 MINI GBIC 1000XD (LC/50km) Transceiver 8330-182-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-169-V1 MINI GBIC 1000XD (LC/60km) Transceiver 8330-181-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-167-V1 MINI GBIC 1000ZX (LC/80km) Transceiver 8330-183-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-170-V1 MINI GBIC 1000EZX (120km) Transceiver 8330-184-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-168-V1 MINI GBIC 1000T (100m) Transceiver 8330-185-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
