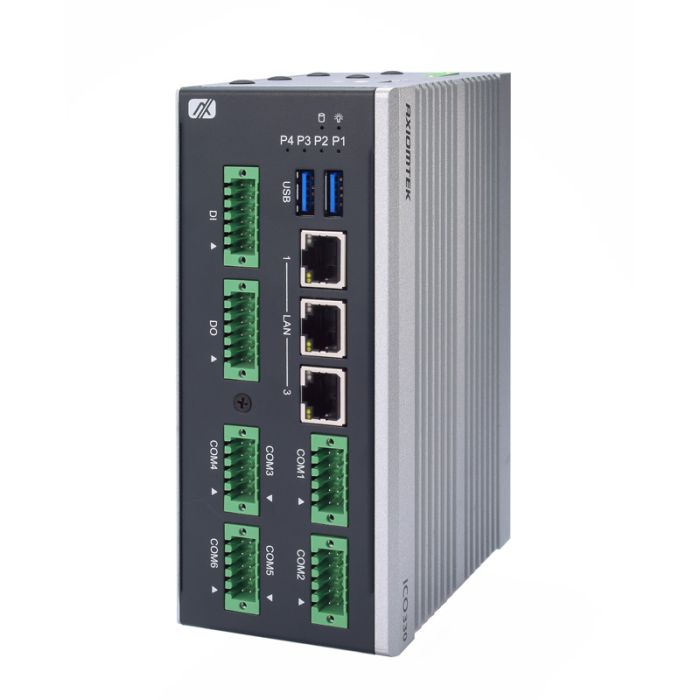

ICO330 DIN-Rail Fanless Embedded System
Intel Atom 3 x 2.5GbE LAN Isolated COM & DIO Fanless System
Key Features:
- Cost-effective with fanless design
- Intel Atom® x6212RE or x6414RE processor
- 6 isolated COM, isolated DIO (8-in/8-out), 3 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
Description
Axiomtek's ICO330 features an integrated isolation system and modular mechanism design that meets 80% of the environmental requirements of the OT area and reduces customer integration time. At the same time, costs and system sizes are minimized, resulting in significant savings for customers. The ICO330 is powered by an Intel Atom® x6212RE or x6414RE processor. With an extended operating temperature range of -40°C to +70°C and a wide input range of 9V to 36V DC or typically 12/24V, the rugged gateways are ideal for data acquisition and communication.
The ICO330 offers great flexibility with full/thin configuration options. The ICO330 provides 1 isolated DIO and 6 full-featured isolated COM ports (RS-232/422/485). It can also be configured in a slim type with two independent COM ports, Addressing any environmental requirements in the OT area. IP40 rated, the ICO330 comes with a single DDR4-3200 SO-DIMM channel capable of up to 32GB of memory. Additionally, mSATA, an internal 2.5-inch SATA drive, and an integrated 8G eMMC are available to meet a wide range of storage requirements. ICO330 features an M.2 (USB 3.0/PCIe) slot for 5G connectivity and NVMe storage, Rev. 1.2 PCI Express Mini Card (USB/PCIe) slot for Wi-Fi/LTE and half-size Rev. 1.2 PCI Express Mini Card (mSATA/USB) slot for wireless module and mSATA SSD.
Key Features:
● Cost-effective with fanless design
● Intel Atom® x6212RE or x6414RE processor
● 6 isolated COM, isolated DIO (8-in/8-out), 3 2.5 GbE LAN
● Wide operating temperature range from -40°C to +70°C
● 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
● Supports TPM 2.0
● Supports cold boot at -40°C
