ICO520 DIN-Rail Fanless Embedded Computer with 12th Gen

Recommended
SKU: ICO520-ALDC-x-Ax

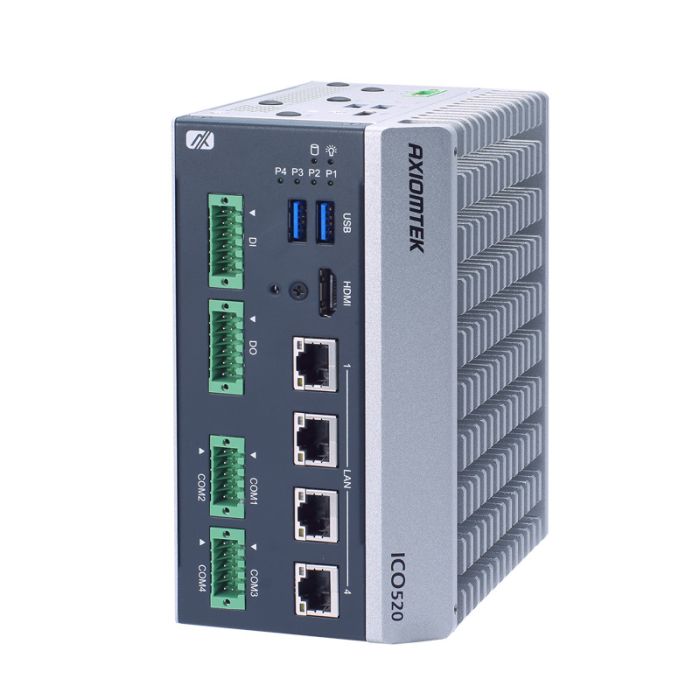

DIN-Rail Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 4 2.5GbE LAN, 2 HDMI, 4 USB, 4 Isolated COM, and 2 Isolated DIO (8-in/8-out)

Key Features:

  • High performance with fanless and DIN-rail design
  • 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
  • 4 isolated COM, isolated DIO (8-in/8-out), 4 2.5 GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • Supports cold boot at -40°C
Datasheet

Description

Product Overview

The Axiomtek ICO520 is a fanless, DIN-rail mountable embedded system designed for industrial and automation environments. Equipped to handle 12th-Generation Intel® Core™ i7/i5/i3 or Celeron® processors, it delivers high performance in a compact form factor. With features like isolated COM ports, multiple 2.5 GbE LAN ports, wide-range DC input power and support for extreme temperature ranges, the ICO520 is ideally suited for machine control, edge computing and industrial networking tasks.

Key Features

High Performance Computing

  • Supports 12th-Generation Intel Core i7/i5/i3 or Celeron-7305E processors

  • Single DDR4-3200 SO-DIMM slot supporting up to 32 GB memory

  • Dual HDMI display outputs, and M.2 Key B slot for NVMe or wireless expansion

Rugged and Reliable Design

  • Fanless, rugged aluminium and steel enclosure for silent, maintenance-free operation

  • Wide DC input range of 9 V to 36 V (typical 12 V or 24 V) with protection features OVP/UVP/OCP/RPP

  • Operating temperature down to -40 °C (cold boot) and up to +70 °C in specified models

  • DIN-rail and wall-mount support for flexible deployment

Connectivity and Expansion

  • Four isolated RS-232/422/485 COM ports (on advanced model) for industrial interface

  • Two isolated 8-in/8-out DIO channels (in advanced model)

  • Four RJ-45 isolated 2.5 GbE LAN ports for high-speed networking

  • Expansion ready: M.2 Key B slot (3050/3052) plus full-size PCIe Mini Card slots for SSD, WiFi, LTE or other modules

  • 2.5" SATA drive support, optional mSATA, and SIM slots for mobile connectivity

Certifications and Compliance

  • CE and FCC Class A certified for industrial deployment

  • TPM 2.0 support for secure deployment

  • IP 30 rated enclosure

  • MTBF of ~47,832 hours @ 50 °C in advanced configuration

Dimensions Drawings





Download

Datasheet
User Manual

More Information

Brand Axiomtek
Specifications

CPU

  • Intel® Core™ i7-1265UE (1.7GHz/10C/15W)

  • Intel® Core™ i5-1245UE (1.5GHz/10C/15W)

  • Intel® Core™ i3-1215UE (1.2GHz/6C/15W)

  • Intel® Celeron® 7305E (1GHz/5C/15W)

Chipset

  • SoC integrated

System Memory

  • 1 x DDR4-3200 SO-DIMM, up to 32GB

COM

  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix-type connectors, only for advanced model)

  • Isolation voltage: 2 kV

USB

  • 4 x USB 3.2

Ethernet

  • 4 x RJ-45 isolated 2.5GbE LAN (Intel® I226-IT )

  • Isolation voltage: 1.5 kV

PoE

  • N/A

CANbus

  • N/A

Digital I/O

  • 2 x Isolated 8-in/8-out DIO (only for advanced model)

  • Isolation voltage: 2 kV

Analog Input

  • N/A

Display

  • 2 x HDMI (1920x1080 @60Hz)

Expansion

  • 1 x M.2 Key B 3050/3052 slot: PCIe/USB (for 5G/Wi-Fi)

  • 1 x full-size Rev.1.2 PCI Express Mini Card slot: PCIe/USB (for Wi-Fi/LTE)

  • 1 x full-size Rev.1.2 PCI Express Mini Card slot: SATA/USB (for mSATA/LTE)

  • 3 x SIM slot (1 for M.2 and 2 for full-size PCI Express Mini Card)

Storage

  • 1 x Internal 2.5” SATA drive

  • 1 x mSATA (occupying 1 x PCI Express Mini Card slot)

  • 1 x M.2 (PCIe Gen2 x4): NVMe (2242/2280) (advanced model only)

Others

  • TPM 2.0

  • 5 x Antenna opening

Power

  • 1 x Terminal block, accepts 9 to 36 VDC input, typically 12/24 VDC

  • Power consumption: full loading

  • 54.82W (with 12VDC)

  • 56.52W (with 24VDC)

  • MTBF: 47,832 (hrs, @50°C)

Watchdog Timer

  • 255 levels, 1 to 255 sec.

Construction

  • Extruded aluminum and heavy-duty steel, IP30

Operating Temperature

  • Cold boot at -40°C

  • With fan kit: All systems support -40°C to +70°C (-40°F to +158°F)

  • Without fan kit:

  • System with i7-1265UE or i5-1245UE supports -40°C to +50°C (-40°F to +122°F)

  • System with i3-1215UE or 7305E supports -40°C to +60°C (-40°F to +140°F)

Relative Humidity

  • 10% to 95% relative humidity, non-condensing

Vibration

  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)

Dimensions
(W x D x H)

  • 83 x 135 x 155 mm (3.27" x 5.31" x 6.1")

Weight (net/gross)

  • Advanced model: 1.75 kg (3.86 lb)

  • Simplified model: 1.65 kg (3.84 lb)

Certifications

  • CE (Class A), FCC (Class A), and UL

EOS Support

  • Windows® 10 IoT, Linux

Software Support

  • Axiomtek EAPI

Mounting

  • DIN-rail

  • Wall Mounting

Ordering Information

ICO520-ALD7-A (P/N-E22C520107)
DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI

ICO520-ALD7-AS (P/N-E22C520106)
DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI

ICO520-ALD5-A (P/N-E22C520105)
DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI

ICO520-ALD5-AS (P/N-E22C520104)
DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI

ICO520-ALD3-A (P/N-E22C520103)
DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI

ICO520-ALD3-AS (P/N-E22C520102)
DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI

ICO520-ALDC-A (P/N-E22C520101)
DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI

ICO520-ALDC-AS (P/N-E22C520100)
DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI

ACC139-I520-FAN (P/N-E29R139100)
ACC139 Fan kit for ICO520 to support operating temperature from -40°C to +70°C
