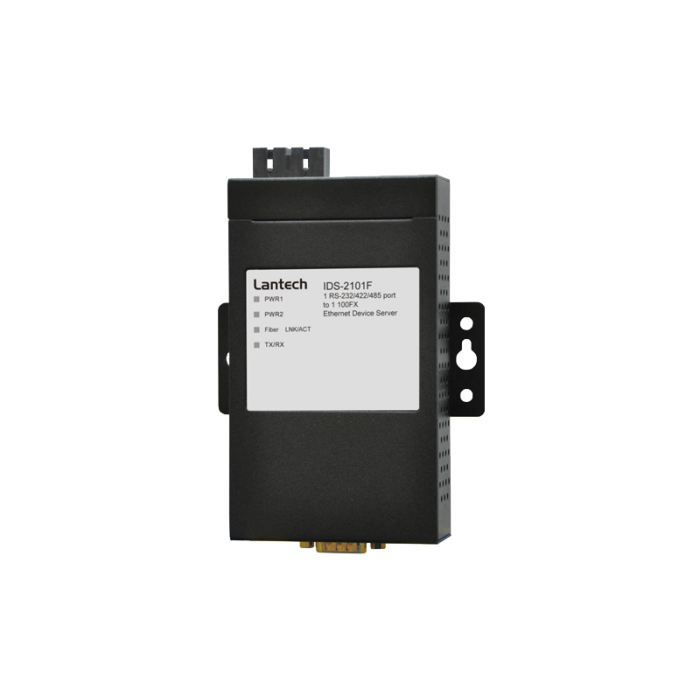

IDS-2101F

_LAN

_{Fiber: 1 100FX
Protection: Built-in 1.5KV magnetic isolation}

_{Optical Fiber}

_Distance:

1. _{Multi mode: 0 to 2km,1310nm (62.5/125 μm, 500 MHz*km)}

2. _{Single mode: 0 to 30km,1310nm (9/125 μm, 3.5 PS/(nm*km)),40, 60km (optional)}

_{Min. TX Output:}

1. _{Multi mode: -20 dBm}

2. _{Single mode: 0 to 40}

_{Max. TX Output:}

1. _{Multi mode: -14 dBm}

2. _{Single mode: 0 to 40 km, 0 dBm}

_Sensitivity:

1. _{-36 to -32 dBm (Single)}

2. _{-34 to -30 dBm (Multi)}

_Serial

_{No. of ports: 1 RS-232/ 422/ 485 port, male DB-9, S/W selectable
RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Line Protection: 15 KV ESD for all signals}

_{DIP Switch}

_{4 modes available for RS-232, RS-422, RS-485 two-wire, RS-485 four-wire}

_Beeper

_{Beeper for event warning or unit positioning}

_{Serial Communication
Parameters}

_{Parity: None, Even, Odd, Space, Mark
Data bits: 5, 6, 7, 8
Stop bits: 1,1.5, 2
Flow control: RTS/CTS, XON/XOFF,
Speed: 110bps to 460.8Kbps}

_LED

_{PWR 1 /PWR 2
Fiber Link/ACT : Green
TX/RX: Serial Port is receiving data (Orange); Serial Port is transmitting data (Green)}

_{Power Supply}

_{Power Input 1:12 to 48 VDC ( 3-pin Terminal Block)
Power Input 2 (Redundant Power):12 to 48VDC (Φ2.0 DC Jack)
Power Line protection:}

1. _{1 KV Burst (EFT), EN61000-4-4}

2. _{0.5 KV Surge, EN61000-4-5}

_{Power Consumption}

_{4 Watts}

_{Overload current protection}

_Present

_{Reverse polarity protection}

_{Present on terminal block}

_{Regulatory Approval}

_RoHS

_{EMI & EMS}

_{FCC Class A, CE Class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11}

_Safety

_n/a

_{Stability Testing}

_{IEC60068-2-27 (Shock), IEC60068-2-32 (Free Fall), IEC60068-2-6 (Vibration)}

_Protocols

_{ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, Telnet, RTelnet, DNS, SNMP
MIB II, HTP, SMTP, SNTP}

_{Serial mode}

_{Virtual Com/ TCP Server/ TCP Client/ UDP/ Serial Tunnel with advanced of}

1. _{TCP Alive Check Timeout}

2. _{Inactivity Timeout}

3. _{Delimiter for Data Packing}

4. _{Force TX Timeout for Data Packing}

_{4 Hosts simultaneous
Connection}

_{Virtual Com/ TCP server/ TCP Client (only raw data)}

_Security

_{HTTPS, SSH v2, SSL v3
(data encryption)**}

_{Event notification}

_{Email/ SNMP trap/ Beeper
SNMP Trap:}

1. _{Cold/ Warm Star}

2. _{DSR, DCD changed}

3. _{IP Changed}

4. _{Authentication Fail}

_{SNMP Response:}

1. _{System MIB}

2. _{Interface MIB}

3. _{ICMP, IP, TCP MIB}

4. _{UDP MIB}

5. _{RS-232 MIB}

_Utilities

_{DS-Tool for Windows NT/2000/XP/2003
Serial Management Tool x64 for Windows Win 7/x64 OS}

1. _{Device discovery}

2. _{Auto IP report}

3. _{Device setting (run-time change, no rebooting)}

4. _{Access control list}

5. _{Group setting}

6. _{Device monitoring}

7. _{Serial port monitoring}

8. _{Log info}

9. _{Group Firmware update batch}

_{Virtual COM/ TTY Drivers
(WDM mode, configuration
in windows device manager)}

1. _{Windows NT/2000/XP/2003, Linux real TTY driver}

2. _{Windows 95/98, Unix Fixed TTY driver by request**}

_Management

_{Web, DS-Tool Utilities, SNMP and Telnet}

_{Serial API Function}

_{Port Control, Input/output Data, Port Status Inquiry}

_{Operation Temperature}

_{Standard: -20°C~60°C (-4°F~140°F)}

_{Storage Temperature}

_{-40°C~85°C (-40°F~185°F)}

_Case

_{Material, IP-30 protection}

_Dimension

_{72mm(W) x 29mm (D) x 123.4mm(H)
( 2.83 x 1.26 x 3.94 in)}

_Weight

_{325 g}

_Warranty

_{5 years}
