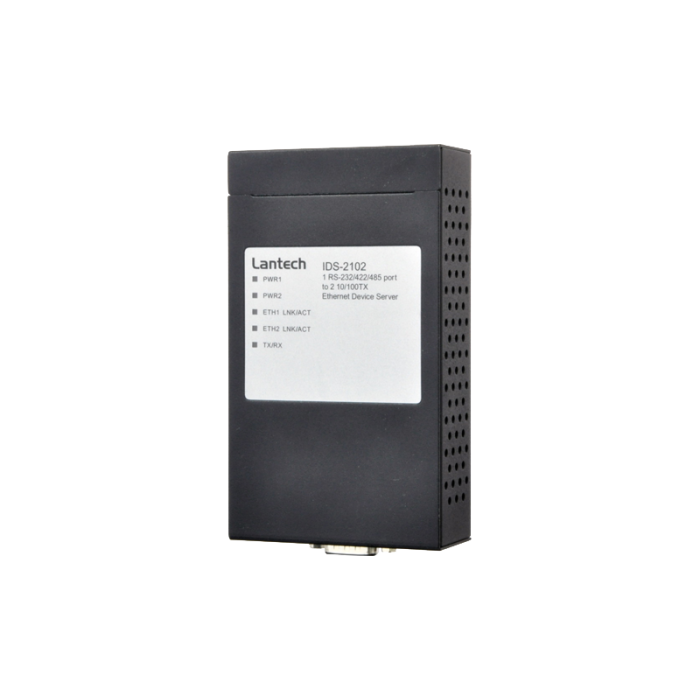

IDS-2102

Name: Tekdis UK - Industrial Computing, Displays and RF Solutions
Address: Access House, Unit 7 62 Portman Road Reading, Berkshire, RG30 1EA, GB
Telephone: 0118 9076132

In stock

SKU:

IDS-2102

Model Code: IDS-2102

- Dual power Inputs by 12~48VDC
- HTTPS and SSH function ensure security
- Event warning by Syslog, E-mail, SNMP Trap, and Beeper

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

_LAN	_{Ethernet: 2 10/100 Mbps, RJ-45 (Redundant mode, Switch mode )} _{Protection: Built-in 1.5KV magnetic isolation}
_Serial	_{1 RS-232/ 422/ 485 port(S/W selectable), male DB-9 type RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Serial Line Protection: 15KV ESD for all signals}
_{DIP Switch}	_{4 modes available for RS-232,RS-422, RS-485 two-wire, RS-485 four-wire}
_Beeper	_{Beeper for event warning or unit positioning}
_{Serial Communication} _Parameters	_{Parity: None, Even, Odd, Space, Mark} _{Data bits: 5, 6, 7, 8} _{Stop bits: 1,1.5, 2} _{Flow control: RTS/CTS, XON,} _{Speed: 110bps to 460.8Kbps}
_LED	_{PWR 1 /PWR 2} _{Fiber Link/ACT : Green} _{TX/RX: Serial Port is receiving data(Orange); Serial Port is transmitting data(Green)}
_{Power Supply}	_{Power input 1: 12~48VDC ( 3-pin Terminal Block)} _{Power input 2(redundant power) : 12~48VDC(DC-jack)} _{Power Iine protection:1KV Burst(EFT),} _{EN 61000-4-4;0.5KV surge, EN 61000-4-5}
_{Power Consumption}	_{3.55 Watts}
_{Regulatory Apporval}	_RoHS
_{EMI & EMS}	_{FCC Class A, CE Class A} _{EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11}
_Safety	_N/a
_{Stability Testing}	_{IEC60068-2-27 (Shock), IEC60068-2-32 (Free Fall), IEC60068-2-6 (Vibration)}
_Protocols	_{ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, Telnet, RTelnet, DNS, SNMP} _{MIB II, HTP, SMTP, SNTP}
_{Serial mode}	_{Virtual Com/ TCP Server/ TCP Client/ UDP/ Serial Tunnel with advanced of} _{-->TCP Alive Check Timeout} _{-->Inactivity Timeout} _{-->Delimiter for Data Packing} _{-->Force TX Timeout for Data Packing}
_{4 Hosts simultaneous} _Connection	_{Virtual Com/TCP server/TCP Client (only raw data)}
_Security	_{HTTPS, SSH v2, SSL v3(data encryption)* *}
_{Event notification}	_{Email/SNMP trap/Beeper} _{SNMP Trap: Cold/ Warm Star} _{DSR, DCD changed} _{IP Changed} _{Authentication Fail} _{SNMP Response: System MIB} _{Interface MIB} _{ICMP, IP, TCP MIB} _{UDP MIB} _{RS-232 MIB}
_Utilities	_{DS-Tool for Windows NT/2000/XP/2003} _{Serial Management Tool x64 for Windows Win 7/x64 OS} _{-->Device discovery} _{-->Auto IP report} _{-->Device setting(run-time change, no rebooting)} _{-->Access control list} _{-->Group setting} _{-->Device monitoring} _{-->Serial port monitoring} _{-->Log info} _{-->Group Firmware update batch}
_{Virtual COM/ TTY Drivers} _{(WDM mode, configuration} _{in windows device manager)}	_{Windows NT/2000/XP/2003, Linux real TTY driver} _{Windows 95/98, Unix Fixed TTY driver by request* *}
_Management	_{Web, DS-Tool Utilitiy, SNMP and Telnet}
_{Serial API Function}	_{Port Control, Input/output Data, Port Status Inquiry}
_{Operation Humidity}	_{5% to 95% (Non-condensing)}
_{Operation Temperature}	_{-20°C~60°C / -4°F~140°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Mechanical Specification}	_{Metal, IP-30}
_{Case Dimension}	_{72mm(W) x 29mm (D) x 123.4mm(H)}
_Weight	_{327 g}
_Warranty	_{5 years}

Downloads

Product Data Sheet

IDS-2102

LAN

Ethernet: 2 10/100 Mbps, RJ-45 (Redundant mode, Switch mode ) Protection: Built-in 1.5KV magnetic isolation

Serial

1 RS-232/ 422/ 485 port(S/W selectable), male DB-9 type RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Serial Line Protection: 15KV ESD for all signals

DIP Switch

4 modes available for RS-232,RS-422, RS-485 two-wire, RS-485 four-wire

Beeper

Beeper for event warning or unit positioning

Serial Communication Parameters

Parity: None, Even, Odd, Space, Mark Data bits: 5, 6, 7, 8 Stop bits: 1,1.5, 2 Flow control: RTS/CTS, XON, Speed: 110bps to 460.8Kbps

LED

PWR 1 /PWR 2 Fiber Link/ACT : Green TX/RX: Serial Port is receiving data(Orange); Serial Port is transmitting data(Green)

Power Supply

Power input 1: 12~48VDC ( 3-pin Terminal Block) Power input 2(redundant power) : 12~48VDC(DC-jack) Power Iine protection:1KV Burst(EFT), EN 61000-4-4;0.5KV surge, EN 61000-4-5

Power Consumption

3.55 Watts

Regulatory Apporval

RoHS

EMI & EMS

FCC Class A, CE Class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11

Safety

N/a

Stability Testing

IEC60068-2-27 (Shock), IEC60068-2-32 (Free Fall), IEC60068-2-6 (Vibration)

Protocols

ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, Telnet, RTelnet, DNS, SNMP MIB II, HTP, SMTP, SNTP

Serial mode

Virtual Com/ TCP Server/ TCP Client/ UDP/ Serial Tunnel with advanced of -->TCP Alive Check Timeout -->Inactivity Timeout -->Delimiter for Data Packing -->Force TX Timeout for Data Packing

4 Hosts simultaneous Connection

Virtual Com/TCP server/TCP Client (only raw data)

Security

HTTPS, SSH v2, SSL v3(data encryption)* *

Event notification

Email/SNMP trap/Beeper SNMP Trap: Cold/ Warm Star DSR, DCD changed IP Changed Authentication Fail SNMP Response: System MIB Interface MIB ICMP, IP, TCP MIB UDP MIB RS-232 MIB

Utilities

Virtual COM/ TTY Drivers (WDM mode, configuration in windows device manager)

Windows NT/2000/XP/2003, Linux real TTY driver Windows 95/98, Unix Fixed TTY driver by request* *

Management

Web, DS-Tool Utilitiy, SNMP and Telnet

Serial API Function

Port Control, Input/output Data, Port Status Inquiry

Operation Humidity

5% to 95% (Non-condensing)

Operation Temperature

-20°C~60°C / -4°F~140°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Mechanical Specification

Metal, IP-30

Case Dimension

72mm(W) x 29mm (D) x 123.4mm(H)

Weight

327 g

Warranty

5 years
