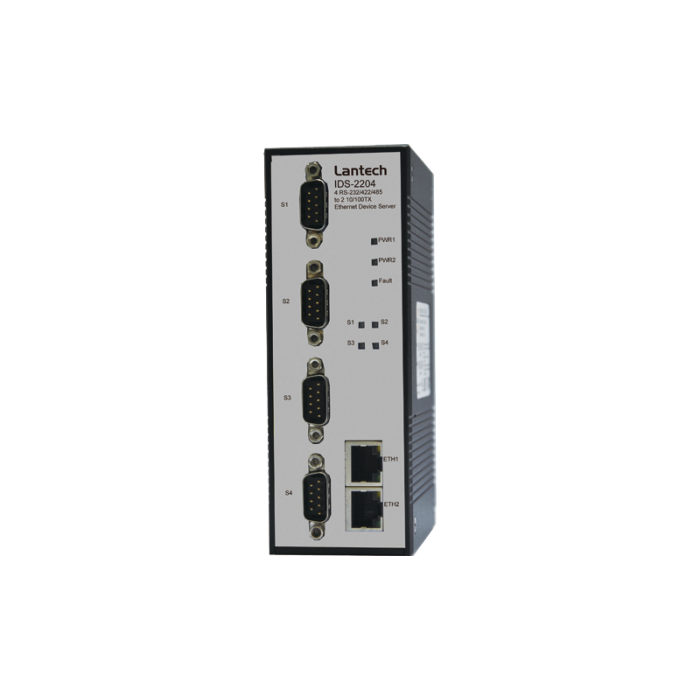

IDS-2204

Description

_LAN	_{2 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX}
_Feature	_{Present at ETH2} _{Power consumption: 8Watts max.} _{Over load & short circuit protection} _{Isolation Voltage: 1000 VDC min.} _{Isolation Resistance : 108 ohms min}
_{Serial Connector}	_{DB9 x 4}
_{Serial Baud Rate}	_{110 bps to 460.8 Kbps}
_{Serial Data Bits}	_{5, 6, 7, 8}
_{Serial Parity}	_{odd, even, none, mark, space}
_{Serial Stop Bits}	_{1, 1.5, 2}
_RS-232	_{TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND}
_RS-422	_{Tx+,Tx-, Rx+, Rx-,GND}
_{RS-485 (4-wire)}	_{Tx+,Tx-, Rx+, Rx-,GND}
_{RS-485 (2-wire)}	_{Data+, Data-,GND}
_{Flow Control}	_{XON/XOFF, RTS/CTS, DTR/DSR}
_LED	_{Power indicator} _{PWR 1(2) / Ready:} _{Red On: Power is on and booting up.} _{Red Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not respond properly.} _{Green On: Power is on and functioning normally.} _{Green Blinking: Located by Administrator.} _{10/100TX RJ45 port} _{Green for port Link/Act at 100Mbps.} _{Amber for port Link/Act at 10Mbps.} _{Serial TX / RX LEDs} _{Red: Serial port is receiving data} _{Green: Serial port is transmitting data}
_{Power Supply}	_{Dual DC inputs. 12-48VDC on 6-pin terminal block}
_{Power Consumption}	_{5.5 Watts}
_{Overload current protection}	_Present
_{Reverse polarity protection}	_{Present on terminal block}
_{EMI & EMS}	_{FCC Part 15, CISPR (EN55022) class A} _{EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11}
_Shock	_{IEC60068-2-27}
_{Free Fall}	_{IEC60068-2-32}
_Vibration	_IEC60068-2-6
_{Serial operation mode}	_{RS232 / RS422 / 4(2)-Wire RS485.} _{Which can be configured by DS-Tool}
_Safety	_EN60950
_{Operation Humidity}	_{5% to 95% Non-condensing}
_{Operation Temperature}	_{-20 to 60°C (14 to 140°F)}
_{Storage Temperature}	_{-40 to 85°C (-40 to 185°F)}
_Case	_IP30, _{52 (W) x 106.1 (D ) x144.3 (H) mm} _{(2.05x4.18x5.68 inch.)}
_Weight	_{682 g}
_Warranty	_{5 years}
