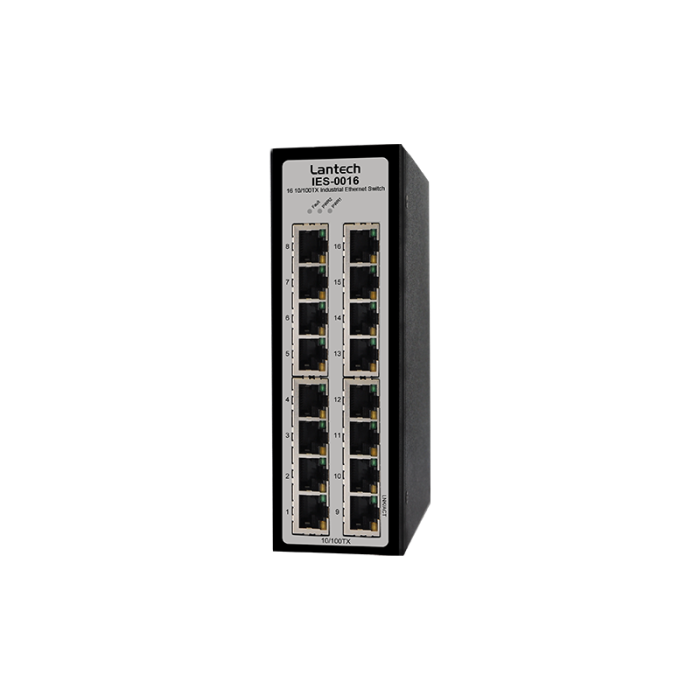

IES-0016 Industrial Unmanaged Ethernet Switch
16 10/100TX PoE Industrial Unmanaged Ethernet Switch
Key Features:
- ISO7637-2 compliance
- E-marking certificate for vehicle application (-24V model)
- Galvanic isolation protection for dual input.
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and Wall-mount** design
- Provides EFT and ESD protection
Description
The Lantech IES-0016 is a high performance 16 10/100TX industrial Ethernet switch which accepts power input 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. It provides ±2000V EFT and ±6000V ESD
protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas.
Key Features
Lantech IES-0016 features high reliability and robustness, with features including:
- Galvanic isolation to shield from transients
- ±2000VDC EFT protection for power line
- ±6000VDC ethernet ESD protection
- E-marking certificate for vehicle application
- Wide temperature range of -40°C~75°C / -40°F~167°F (-E model)
- Dual 9V~36V DC power input
- ISO7637-2 compliance
- Back-plane (switching fabric): 3.2 Gbps
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and wall-mount design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
8351-116 |
IES-0016-24V | 16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-117 |
IES-0016-24V-E | 16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
OPTIONAL ACCESSORIES - DIN Rail Power
|
Model name |
Description |
|---|---|
| MDR-40 Series | 40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C) |
| MDR-20 Series | 20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
