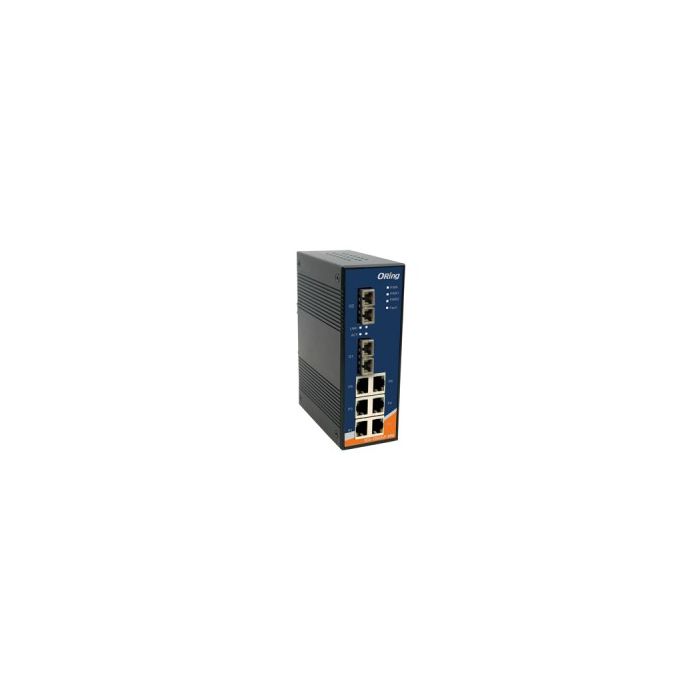

IES-1062GT - 8 port unmanaged switch

SKU: IES-1062GT

6x10/100Base-T(X) and 2x100Base-FX, 10/100/1000Base-T(X), 1000Base-SX or 1000BaseLX ports. IES-1062 series support redundant power input, relay output alarm, surge protection, wide operating temperature range from -40° to 70°C.

Datasheet

Description

  • IES-1080 provide 8x10/100Base-T(X) ports
  • IES-1062GT provide 6x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports
  • IES-1062FX series provide 6x10/100Base-T(X) and 2x100Base-FX fiber ports
  • IES-1062GF series provide 6x10/100Base-T(X) and 2x1000Base-X fiber ports
  • Triple redundant DC power inputs of terminal block and power jack
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forw ard transmission
  • Support flow control
  • Warning system by relay output
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

Download

Datasheet

More Information

Specifications
Physical Ports

10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX

 6

10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX

 2
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power Indicator Green : Power LED x 3
Fault Indicator Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-FX RJ45 Port Indicator Green for port Link/Act. Amber for Duplex/Collision

10/100/1000Base-T(X) / Fiber Port Indicator

 Green for port Link/Act. Amber for Link
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
Power Consumption (Typ.) 7 Watts
Overload Current Protection Present
Reverse Polarity Protection Present on terminal block
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 52(W) x 106.1(D) x 144.3(H) mm (2.05x4.18x5.68 inch.)
Weight (g) 677  g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1, UL508(E331061)
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) 368,351
Warranty 5 years
