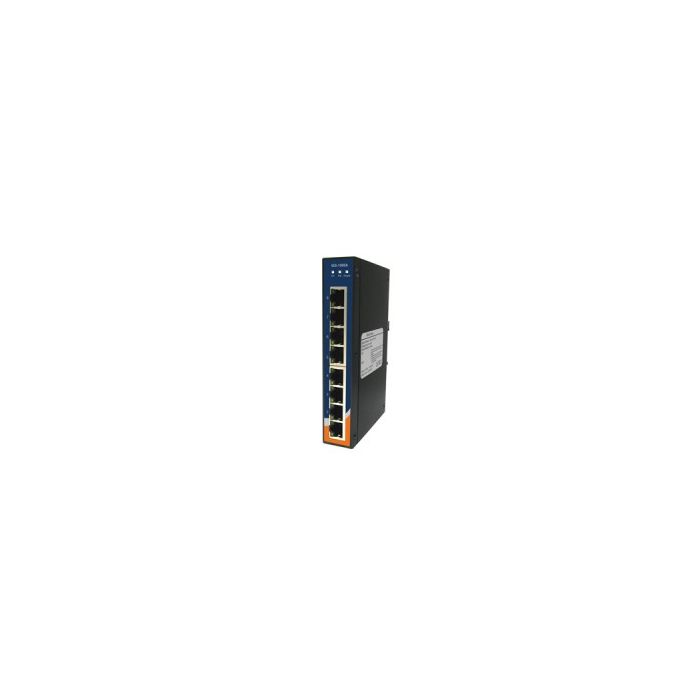

IES-1080A - 8 port umanaged switch
View larger image
IES-1080A - 8 port umanaged switch
8x10/100Base-T(X) ports. IES-1080 series support redundant power input, relay output alarm, surge protection, wide operating temperature range from -40° to 70°C.
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
8
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T
MAC Table
1K
Packet buffer
448K bits
Processing
Store-and-Forward
Switch Properties
Switching latency: 7us
LED Indicators
Power Indicator
Green : Power LED x 2
Fault Indicator
Amber : Indicates PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator
Upper LED for Link/Act indicator: Green for Link/Act
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)
<3.7Watts, 0.23A-0.07A
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
Weight (g)
391 g
Hardware Version
V2.0
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 75°C (-40 to 167°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
EMC
CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS
EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
Shock
IEC60068-2-27
Free Fall
IEC60068-2-31
Vibration
IEC60068-2-6
Safety
EN60950-1(LVD)
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )
2,439,118hrs
Warranty
5 years
