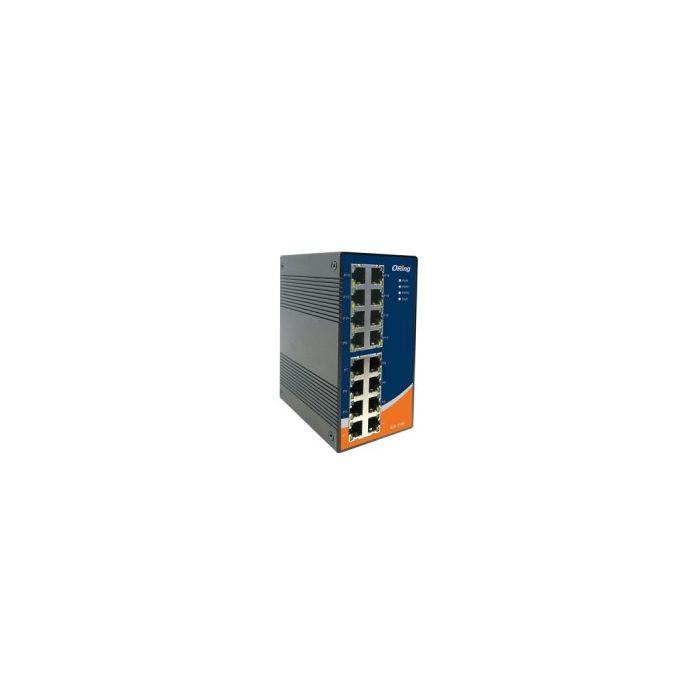

IES-1160 - 16 port unmanaged switch
View larger image
IES-1160 - 16 port unmanaged switch
16x10/100Base-T(X) port IES-1160 support redundant power inputs, relay output alarm, surge protection and wide operating temperature range from -40°C to 70°C.
Description
RJ-45 ports support Auto MDI/MDI-X switching function
Provides Store-and-Forward switching architecture
Provides 3.2Gbps Back-plane (Switching Fabric)
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
More Information
Specifications
Physical Ports
10/100 Base-T(X) Ports in RJ45
16
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T
MAC Table
8192 MAC addresses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching latency: 9 μs
LED Indicators
Power Indicator
Green : Power LED x 3
Fault Indicator
Amber : Indicates power failure occurred
10/100Base-T(X) RJ45 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual DC inputs. 12 ~ 48VDC on 6-pin terminal block
Power Consumption (Typ.)
9 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present on terminal block
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
74.3(W)x109.2(D)x153.6(H) mm (2.93 x 4.3 x 6.05 inch)
Weight (g)
1060 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 70°C (-40 to 158°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
EMI
FCC Part 15, CISPR (EN55022) class A
EMS
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock
IEC60068-2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Safety
EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )
267,635
Warranty
5 years
