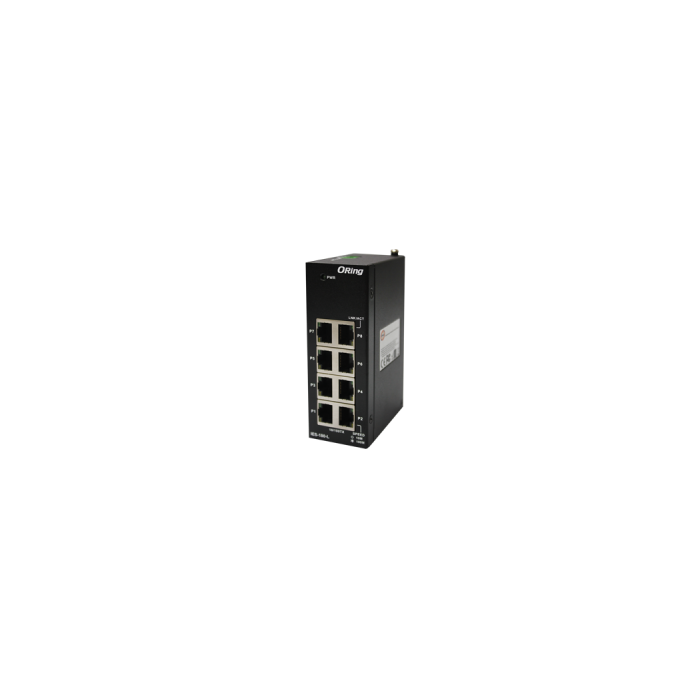

IES-180-L - 8 port unmanaged switch
IES-180-L - 8 port unmanaged switch
8x10/100Base-T(X) ports. IES-180-L is with rigid IP-30 housing design and extended operating temperature range from -20o C to 60o C.
Description
- Support 8 ports 10/100 Base-T(X)
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Support broadcast storm protection
- Compact size for easily installation
- Support operating temperature from -20 to 60oC
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
More Information
|
Specifications |
| Physical Ports |
|
|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX
|
8 |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
|
| MAC Table |
1024 MAC address |
| Priority Queues |
448Kbits |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 1 |
| 10/100Base-T(X) RJ45 Port Indicator |
Green for port Link/Act. Amber for speed indicator – Amber for 100Mbps, off-light for 10Mbps |
| Power |
|
| Power Input |
10~30 VDC voltage power input on 3-pin terminal block |
| Power Consumption (Typ.) |
1.65 watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
41 x 75 x 115 mm (1.61 x 2.95 x 4.53 inch) |
| Weight (g) |
307 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-20 to 60°C (-4 to 140oF) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
