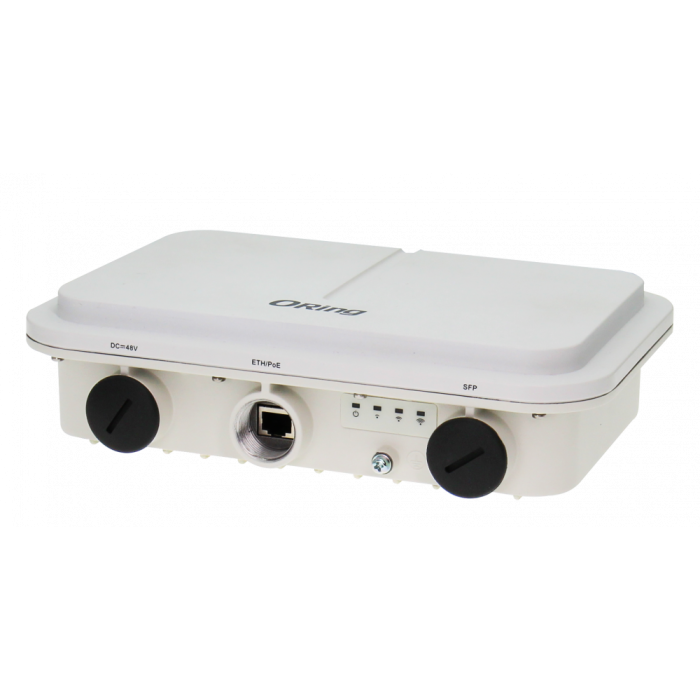

IGAP-W99110GP+ - Industrial Dual Wi-Fi 6 Wireless Access Point
Industrial Dual Wi-Fi 6 wireless access point with 1x10/100/1000Base-T(X) and 1xSFP slot, PoE P.D., IP68 grade
The IGAP-W99110GP+ is a high-performance Wi-Fi 6 (IEEE802.11ax) industrial outdoor access point. The IGAP-W99110GP+ provides simultaneous dual-band dual-radio with up to 2.4Gbps access rate, it offers 4 spatial streams.
The interface includes one SFP port and one Gigabit Ethernet port with PoE/ local power supply. Taking the wireless network security, RF control, mobile access, QoS and other important factors into account.
By the technologies implemented in IEEE802.11ax, such as OFDMA, BSS Color and MU-MIMO, it can decrease the network latency, spatial reuse and improve network efficiency.
Key Features:
- High-Speed Air Connectivity: WLAN interface support up to 2400Mbps link speed
- Dual-Band Dual-Radio IEEE802.11ax with 4 spatial streams
- Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
- Support wireless load balance
- Max 1024 client connections
- Supports a wide variety of QoS policies
- ARP Spoofing Protection
- Support IPv4/IPv6 address
- Support AP/Client Mode
- SSID capacity up to 32
- Wireless connecting status monitoring
- Secured Management by Telnet, SSH, TFTP, HTTP
- Event Warning by Syslog
- Wall/Pole-mount installation
Physical Ports
- 10/100/1000 Base-T(X) Ports in RJ45: 1
- Gigabit SFP: 1
- Console: 1
- Reset: AP/Factory default by press time
WLAN interface
- Operating Mode: AP/Client
- Antenna: Built-in 9dBi Directional Antenna, 60° total
- Spatial Streams: 4 spatial streams, MU-MIMO
- WIFI Standard:
- IEEE802.11a: OFDM
- IEEE802.11b: CCK/DQPSK/DBPSK
- IEEE802.11g: OFDM
- IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM
- IEEE802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- IEEE802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- Frequency Band:
- 2.412~2.472 GHz
- 5.180~5.240 GHz, 5.745~5.825 GHz
- Transmission Rate
- Up to [email protected]
- Up to 1.2Gbps @ 5G
- Up to 2.4Gbps per AP
- 2.4G+5G is recommended with 1.775Gbps access rate
- Transmit Power:
- 28dBm
- (Note: The actual transmit power varies according to different countries and regions)
- Receiver Sensitivity:
- 802.11a : -71dBm ± 2dBm@54Mbps
- 802.11b : -85dBm ± 2dBm@11Mbps
- 802.11g : -71dBm ± 2dBm@54Mbps
- 802.11n : -83dBm ± 2dBm@MCS0
- 802.11ac HT20 :-83dBm ± 2dBm@MCS0
- 802.11ac HT40 :-79dBm ± 2dBm@MCS0
- 802.11ac HT80 :-76dBm ± 2dBm@MCS0
- 802.11ax HT80 :-76dBm ± 2dBm@MCS0
- Encryption Security
- WEP: (64-bit ,128-bit key)
- WPA/WPA2 PSK :TKIP and AES encryption (802.11i)
- 802.1X/RADIUS Authentication supported
- Wireless Security: SSID broadcast disable and enable
LED Indicators
- System Indicator:
- Green Blinking: System booting
- Green Solid: Initialization in progress or proper operation.
- Orange Blinking: Initialization is complete
- Red Blinking: uplink port is disconnected.
- RSSI Green 1 Solid: <-70dBm, 2 Solid: -70 ~ -50dBm, 3 Solid: > -50dBm
Power
- Input Power PoE: (802.3af / 802.3at) or 44~57VDC power supply
- Power Consumption (Typ.): <12.95W
- Surge Protection: Common mode +/-9kV
Physical Characteristic
- Enclosure: IP-68
- Dimension: (W x D x H) 251 x 168 × 64 mm (Excluding the bracket)
- Weight: <1.5kg
