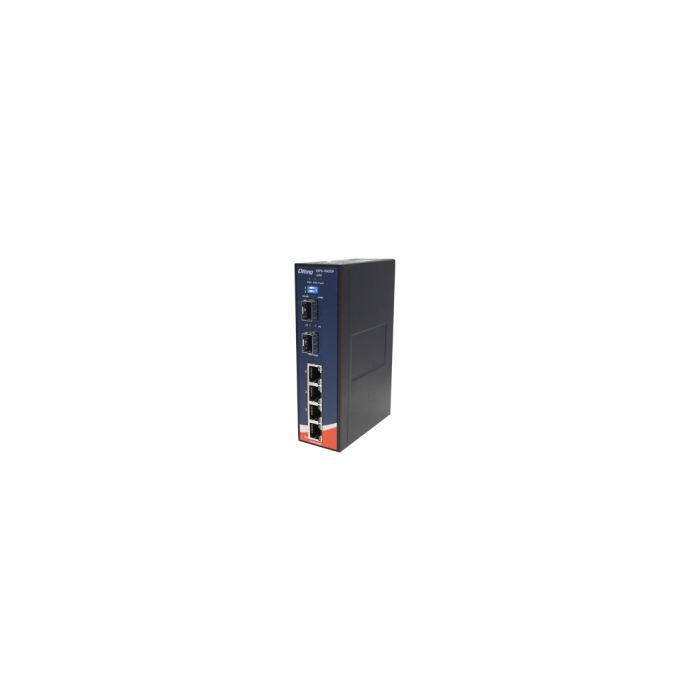

IGPS-1042GP - 6-port Unmanaged GbE Switch
Industrial 6-port unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket, 24VDC power input
Description
IGPS-1042GP-24V is an unmanaged PoE Ethernet switch with a P.S.E. function. IGPS-1042GP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GP-24V supports a wide range of 12~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of the operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet applications.
- IGPS-1042GP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Supports P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
- Advanced PoE power boost technology to support dual 24VDC power inputs
- SFP port supports 100Base-FX and 1000Base-X speed
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
- Supports Jumbo Frame up to 10K Bytes
Download
More Information
| Specifications |
|
|---|
