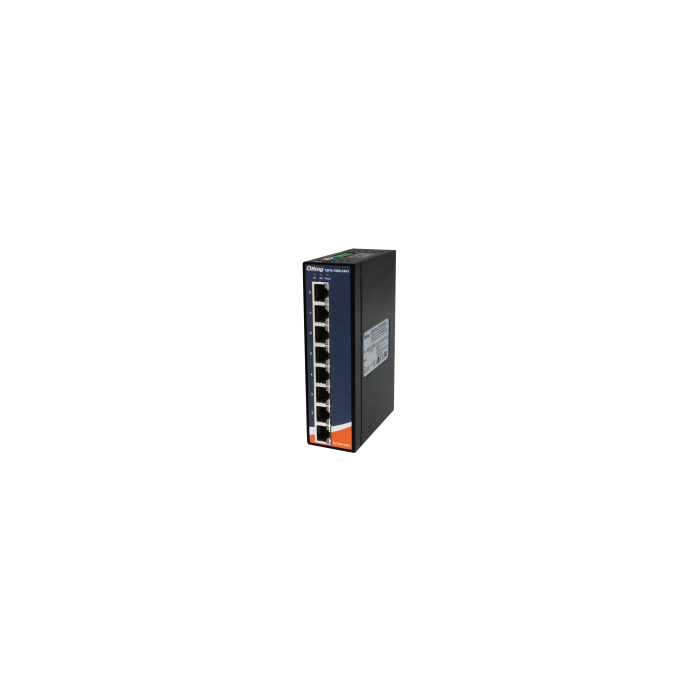

IGPS-1080-24V 8-port PoE Ethernet switch

SKU: IGPS-1080-24V-xx

Industrial 8-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E., 24VDC power inputs, Isolation version

Datasheet

Description

IGPS-1080-24V-I provide 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
Supports Isolation protection
Supports jumbo frame up to 9.6KBytes
Supports dual 24VDC power inputs for power redundancy
Supports auto-negotiation and auto-MDI/MDI-X
Supports store and forward transmission
Supports flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Datasheet

Specifications

Physical Ports
10/100/1000Base-T(X) Ports in RJ45 With P.S.E.	8
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table	4K MAC addresses
Processing	Store-and-Forward
Jumbo Frame	Up to 9.6KBytes
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) RJ45 port and PoE indicator	Green for port Link/Act. Green for PoE power injected.
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
DIP-Switch
DIP-Switch 1	Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2	Power-1 failed warning : (ON) enable, (OFF) disable
Power
Redundant Input power	Dual DC inputs 24~36VDC on 6-pin terminal block.
Power consumption (Typ.)	13 Watts
PoE Power Budget	120 Watts
Overload current protection	Present
Reverse polarity protection	Present
Physical Characteristic
Enclosure	IP-30
Dimension (W x D x H)	41(W) x 94.9(D) x 144.3(H) mm
Weight (g)	686 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55032) class A, E-MARK
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Warranty	5 years
