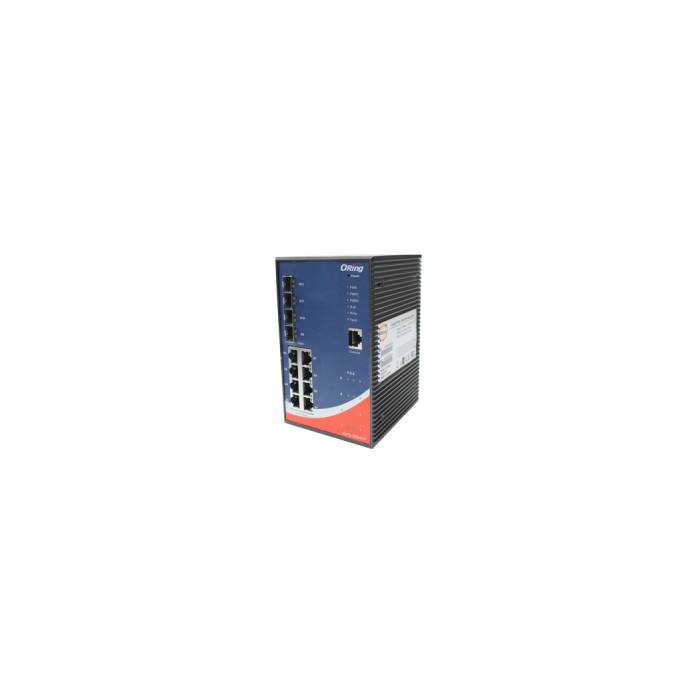

IGPS-9084GP - 8-port managed PoE Ethernet switch

In stock
SKU:
IGPS-9084GP-xx
Brand: ORing

Industrial 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X, SFP socket


Enquire Now
Enquire about this product:
  • Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • Open-Ring support the other vendor’s ring technology in open architecture
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • 8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
  • Support PoE scheduled configuration and PoE auto-ping check function
  • Support IEEE 1588v2 clock synchronization
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client
  • Support IP-based bandwidth management
  • Supports backup unit device DBU-01 to quickly configuration backup/restore

*NOTE: This function is available by request only


This product is listed in Industrial Automation, Mining, Transport, ORing, Ethernet Switches
Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX 8
100/1000Base-X with SFP port 4
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)

MAC Table 8K
Priority Queues 8
Processing Store-and-Forward
Switch Properties

Switching latency: 7 μs
Switching bandwidth: 28Gbps
Max. Number of Available VLANs : 4095
VLAN ID Range : 1 to 4094
IGMP multicast groups: 256 for each VLAN
Port rate limiting: User Define

Jumbo frame Up to 9.6K Bytes
Security Featues

Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security

Software Features

STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP

Network Redundancy

O-Ring
Open-Ring
O-Chain
*note MRP
MSTP (RSTP/STP compatible)

RS-232 Serial Console Port RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator Green : Power LED x 2
R.M. Indicator Green : Indicates that the system is operating in O-Ring Master mode
Ring Indicator

Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.

Fault Indicator Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port Indicator Dual color LED : Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator
100/1000Base-X SFP port Indicator Green for port Link/Act.
PoE Indicator Green : PoE enabled LED x 8
Power
Redundant Input Power Dual DC inputs. 50~57VDC on 6-pin terminal block
Power Consumption (Typ.) 13.2 Watts
Overload Current Protection Present
Reverse polarity protection NOT Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 96.4 (W) x 105.5 (D) x 154 (H) mm (3.8 x 4.15 x 6.06 inches)
Weight (g) 1205 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS

IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11

Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
